DISC PAD (FRONT) REPLACEMENT [MZR 2.3 DISI Turbo]

id0411008007p3

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, pump the brake pedal a few times and verify that the brakes do not drag.

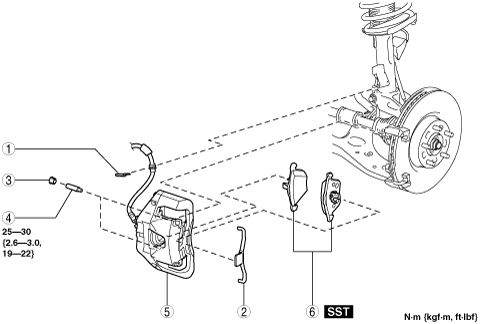

am3uuw00005750

1	Clip
2	Retaining clip (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
3	Cap
4	Bolt
5	Caliper
6	Disc pad (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
