VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6]

id0411008016p6

1. Remove the battery and battery tray. (L.H.D.) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

3. Disconnect the vacuum hose in the order shown in the figure.

am5ezw00006228

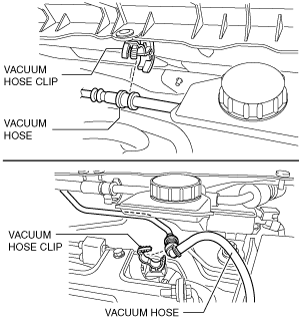

4. Remove the vacuum hose from the vacuum hose clip. (L.H.D.)

am3zzw00010310

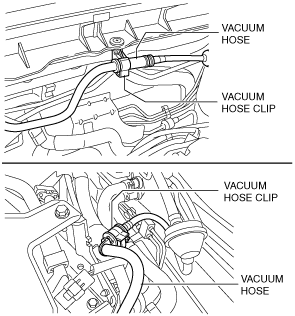

5. Remove the vacuum hose from the vacuum hose clip. (R.H.D.)

am3zzw00010311

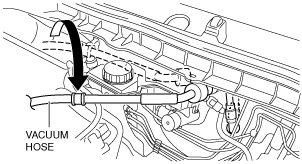

6. Move the vacuum hose as shown in the figure. (L.H.D.)

am3zzw00005727

7. Disconnect the vacuum hose connector from the power brake unit while pressing the tabs of the vacuum hose connector.

am3zzw00006070

8. Remove the vacuum hose.

9. Install in the reverse order of removal.

10. Insert the vacuum hose to the vacuum pump in the order shown in the figure.

am5ezw00006233

11. Pull the vacuum hose to verify that it does not come off, and reinsert it completely.

12. Verify that the vacuum hose is inserted so that the connector contacts the power brake unit flange.

am3uuw00001800
