ON-BOARD DIAGNOSTIC SYSTEM OUTLINE [FW6A-EL]

id050225280000

Purpose/Function

• An on-board diagnostic system has been adopted to improve serviceability.

• On-board diagnostic system adopted consisting of the following functions:

― Malfunction detection function

― Fail-safe function

― Diagnostic data memory function

― Malfunction indication function

• MIL

• AT warning light

― External tester communication function

• DLC-2

• CAN

― PID/DATA monitor function

― Simulation function

Construction/Operation

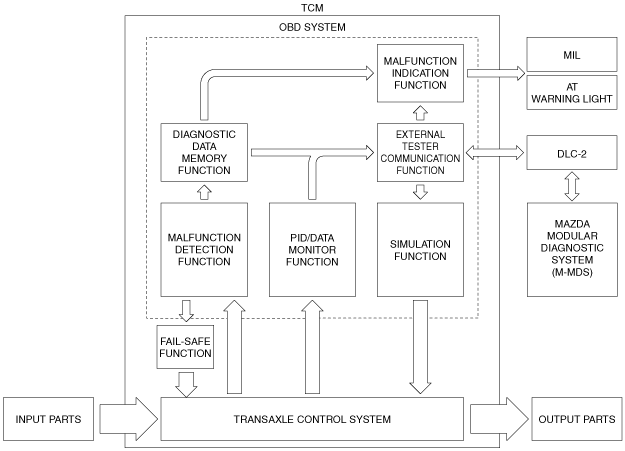

Block Diagram

am3uun00001747
