ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DETECTION FUNCTION [FW6A-EL]


id050225280100


Purpose/Function

•  The malfunction diagnostic function detects transaxle malfunctions.
•  Accurate and quick repair/service can be performed to facilitate malfunction cause determination using the malfunction detection function.

Construction/Operation

•  If a malfunction occurs in the transaxle, it is recorded as a DTC. A DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

DTC table

×: Applicable
—: Not applicable

DTC No.

MIL

AT warning light

Description

Fail-safe function

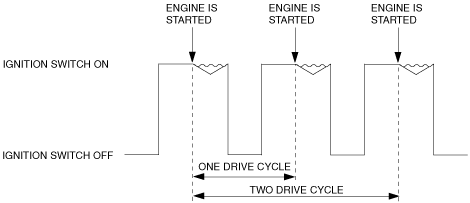

Drive cycle

Self test type*1

Memory function

P0218:00
Illuminate
Illuminate
Automatic transaxle protection control
×
1
C
×
P0500:00
Illuminate
Vehicle speed signal circuit malfunction
×
1
C
×
P0666:00
Illuminate
Illuminate
ECU internal temperature sensor circuit(s) malfunction
×
2
C
×
P0667:00
Illuminate
Illuminate
ECU internal temperature sensor two-range/performance problem
×
2
C
×
P06B8:00
Illuminate
NVRAM malfunction
1
C, O
×
P0705:00
Illuminate
Illuminate
Transaxle range sensor circuit malfunction
×
1
C, O
×
P0706:00
Illuminate
Illuminate
Transaxle range sensor range/performance problem
×
2
C
×
P0711:00
Illuminate
Illuminate
TFT sensor range/performance problem
×
2
C
×
P0712:00
Illuminate
Illuminate
TFT sensor circuit low input
×
1
C, O
×
P0713:00
Illuminate
Illuminate
TFT sensor circuit high input
×
2
C
×
P0716:00
Illuminate
Illuminate
Turbine/Input shaft speed sensor range/performance problem
×
1
C
×
P0717:00
Illuminate
Illuminate
Open circuit in turbine/input shaft speed sensor circuit
×
1
C
×
P0721:00
Illuminate
Illuminate
Output shaft speed sensor range/performance problem
×
1
C
×
P0722:00
Illuminate
Illuminate
Open circuit in output shaft speed sensor circuit
×
1
C
×
P0729:00
6GR incorrect ratio
×
2
C
×
P0731:00
1GR incorrect ratio
×
2
C
×
P0732:00
2GR incorrect ratio
×
2
C
×
P0733:00
3GR incorrect ratio
×
2
C
×
P0734:00
4GR incorrect ratio
×
2
C
×
P0735:00
5GR incorrect ratio
×
2
C
×
P0736:00
Illuminate
Gear reverse incorrect ratio
×
2
C
×
P0741:00
Illuminate
Illuminate
TCC control solenoid stuck off
×
2
C
×
P0743:00
Illuminate
Illuminate
TCC control solenoid circuit malfunction
×
1
C, O
×
P0746:00
Illuminate
Illuminate
Pressure control solenoid stuck off
×
2
C
×
P0748:00
Illuminate
Illuminate
Pressure control solenoid circuit malfunction
×
1
C, O
×
P0751:00
Illuminate
Illuminate
Shift solenoid No.1 stuck off
×
2
C
×
P0752:00
Illuminate
Illuminate
Shift solenoid No.1 stuck on
×
2
C
×
P0753:00
Illuminate
Illuminate
Shift solenoid No.1 circuit malfunction
×
1
C, O
×
P0756:00
Illuminate
Illuminate
Shift solenoid No.2 stuck off
×
2
C
×
P0757:00
Illuminate
Illuminate
Shift solenoid No.2 stuck on
×
2
C
×
P0758:00
Illuminate
Illuminate
Shift solenoid No.2 circuit malfunction
×
1
C, O
×
P0761:00
Illuminate
Illuminate
Shift solenoid No.3 stuck off
×
2
C
×
P0762:00
Illuminate
Illuminate
Shift solenoid No.3 stuck on
×
2
C
×
P0763:00
Illuminate
Illuminate
Shift solenoid No.3 circuit malfunction
×
1
C, O
×
P0766:00
Illuminate
Illuminate
Shift solenoid No.4 stuck off
×
2
C
×
P0767:00
Illuminate
Illuminate
Shift solenoid No.4 stuck on
×
2
C
×
P0768:00
Illuminate
Illuminate
Shift solenoid No.4 circuit malfunction
×
1
C, O
×
P0771:00
Illuminate
Illuminate
On/off solenoid stuck off
×
2
C
×
P0772:00
Illuminate
Illuminate
On/off solenoid stuck on
×
2
C
×
P0773:00
Illuminate
Illuminate
On/off solenoid circuit malfunction
×
1
C, O
×
P0780:00
Illuminate
Illuminate
Gear shifting malfunction
×
2
C
×
P079A:00
Illuminate
Illuminate
Shift solenoid No.3 stuck off/On/off solenoid stuck on
×
2
C
×
P0819:00
M position switch/Up switch/Down switch signal error
×
1
C
×
P0842:00
Illuminate
Illuminate
Oil pressure switch No.1 stuck on
×
2
C
×
P0843:00
Illuminate
Illuminate
Oil pressure switch No.1 stuck off
×
2
C
×
P0847:00
Illuminate
Illuminate
Oil pressure switch No.2 stuck on
×
2
C
×
P0848:00
Illuminate
Illuminate
Oil pressure switch No.2 stuck off
×
2
C
×
P0872:00
Illuminate
Illuminate
Oil pressure switch No.3 stuck on
×
2
C
×
P0873:00
Illuminate
Illuminate
Oil pressure switch No.3 stuck off
×
2
C
×
P0877:00
Illuminate
Illuminate
Oil pressure switch No.4 stuck on
×
2
C
×
P0878:00
Illuminate
Illuminate
Oil pressure switch No.4 stuck off
×
2
C
×
P0882:00
Illuminate
TCM power supply voltage low
×
1
C
×
P0883:00
Illuminate
TCM power supply voltage high
×
1
C, O
×
P0C2C:00
Electric AT oil pump rotation malfunction
×
1
C
×
P1728:00
Clutch slippage
×
2
C
×
P1738:00
Illuminate
Automatic transaxle internal malfunction
×
2
C
×
P1784:00
Illuminate
Hi cut valve stuck off/R-3-5 cut valve stuck on
×
2
C
×
P181F:00
Electric AT oil pump/Electric AT oil pump relay circuit malfunction
×
1
C
×
P2712:00
Oil pump shift valve stuck
×
1
C
×
U0073:00
CAN system communication error (HS CAN)
×
1
C, O
×
U0074:00
CAN system communication error (local CAN between TCM and PCM)
×
1
C, O
×
U0100:00
Illuminate
Communication error to PCM (HS CAN)
×
1
C, O
×
U0115:00
Illuminate
Communication error to PCM (local CAN between TCM and PCM)
×
1
C, O
×
U0121:00
Illuminate
Communication error to DSC HU/CM
×
1
C, O
×
U0141:00
Communication error to BCM
×
1
C, O
×
U0155:00
Illuminate
Communication error to instrument cluster
×
1
C, O
×
U0442:00
Invalid data received from PCM (local CAN between TCM and PCM)
×
1
C, O
×

*1  ::C: CMDTC self test, O: KOEO self test, R: KOER self test


DTC separate detection condition

DTC No.

Description

Detection condition

P0218:00
Automatic transaxle protection control
•  Under the following conditions, the ATF temperature is 135 °C {275 °F} or more for 10 s:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  TFT sensor related DTC is not recorded.
P0500:00
Vehicle speed signal circuit malfunction
•  Under the following conditions, the vehicle speed signal input from DSC HU/CM is incorrect for 10 s:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  Vehicle speed is 16 km/h {9.9 mph} or more.
―  There is no difference in speed between turbine/input shaft speed sensor and output shaft speed sensor.
P0666:00
ECU internal temperature sensor circuit(s) malfunction
•  Under the following conditions, there is malfunction in circuits of two or more ECU internal temperature sensors:
―  Battery voltage is 8 V or more.
•  Under the following conditions, one ECU internal temperature sensor has malfunction, with difference in temperature between remaining two ECU internal temperature sensors being 10 °C {18 °F} or more:
―  Battery voltage is 8 V or more.
―  Soaked for 6 hours or more.
P0667:00
ECU internal temperature sensor two-range/performance problem
•  Under the following conditions, the difference between ECU internal temperatures of three ECU internal temperature sensors is 10 °C {18 °F} or more:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  Soaked for 6 hours or more.
―  No malfunction in ECU internal temperature sensor circuit
P06B8:00
NVRAM malfunction
•  Under the following conditions, TCM internal NVRAM data retention/read/write disabled:
―  Battery voltage is 8 V or more.
P0705:00
Transaxle range sensor circuit malfunction
•  Under the following conditions, incorrect voltage in any of transaxle range sensors 1 to 4:
―  Battery voltage is 8 V or more.
P0706:00
Transaxle range sensor range/performance problem
•  Under the following conditions, pattern identification error in switch condition of transaxle range sensors 1 to 4:
―  Battery voltage is 8 V or more.
P0711:00
TFT sensor range/performance problem
•  Under the following conditions, the ATF temperature is 40 °C {104 °F} or less:
―  Certain period has elapsed since engine start.
―  Battery voltage is 8 V or more.
―  ECU internal temperature sensor related DTC is not recorded.
―  Soaked for 6 hours or more.
―  ECU internal temperature increases above specified temperature.
P0712:00
TFT sensor circuit low input
•  Under the following conditions, the TFT sensor voltage is 0.12 V or less for 5 s:
―  Battery voltage is 8 V or more.
P0713:00
TFT sensor circuit high input
•  Under the following conditions, the ATF temperature is −40 °C {−40 °F} or less for 5 s:
―  Battery voltage is 8 V or more.
―  IAT is −25 °C {−13 °F} or more.
―  IAT sensor related DTC is not recorded.
P0716:00
Turbine/Input shaft speed sensor range/performance problem
•  Under the following conditions, the turbine/input shaft speed is 9,000 rpm or more for 1 s:
―  Engine is running.
―  Battery voltage is 10 V or more.
―  Engine speed is 7,500 rpm or less.
P0717:00
Open circuit in turbine/input shaft speed sensor circuit
•  Under the following conditions, the turbine/input shaft speed sensor signal is not input for 1 s:
―  Engine is running.
―  Battery voltage is 10 V or more.
―  Vehicle speed signal related DTC is not recorded.
―  Vehicle speed is 16 km/h {9.9 mph} or more.
―  There is no difference between vehicle speed signal from DSC HU/CM and output shaft speed sensor signal.
―  DTC U0121:00 is not recorded.
P0721:00
Output shaft speed sensor range/performance problem
•  Under the following conditions, the output shaft speed is 13,560 rpm or more for 1 s:
―  Engine is running.
―  Battery voltage is 10 V or more.
•  Under the following conditions, the vehicle speed signal from the DSC HU/CM and the output shaft speed sensor signal differ by 520 rpm or more for 1 s:
―  Engine is running.
―  Battery voltage is 10 V or more.
―  Vehicle speed signal related DTC is not recorded.
―  Vehicle speed is 16 km/h {9.9 mph} or more.
―  Vehicle speed signal from DSC HU/CM and turbine/input shaft speed sensor signal do not differ.
―  Output shaft speed sensor signal is input.
―  Output shaft speed is 13,560 rpm or less.
P0722:00
Open circuit in output shaft speed sensor circuit
•  Under the following conditions, the output shaft speed sensor signal is not input for 1 s:
―  Engine is running.
―  Battery voltage is 10 V or more.
―  Vehicle speed signal related DTC is not recorded.
―  Vehicle speed is 16 km/h {9.9 mph} or more.
―  There is no difference between vehicle speed signal from DSC HU/CM and output shaft speed sensor signal.
―  DTC U0121:00 is not recorded.
P0729:00
6GR incorrect ratio
•  In D position, 6GR, the following phenomenon occurs:
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0731:00
1GR incorrect ratio
•  In D position, 1GR, the following phenomenon occurs:
―  Speed ratio is 0.75 to 1.2 for 2,000 ms while vehicle is stopped in D position.
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0732:00
2GR incorrect ratio
•  In D position, 2GR, the following phenomenon occurs:
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0733:00
3GR incorrect ratio
•  In D position, 3GR, the following phenomenon occurs:
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0734:00
4GR incorrect ratio
•  In D position, 4GR, the following phenomenon occurs:
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0735:00
5GR incorrect ratio
•  In D position, 5GR, the following phenomenon occurs:
―  Engine speed and turbine/input shaft speed deviates by 600 rpm for 230 to 1,980 ms (varies with ATF temperature and ECT) during shift-up.
―  Engine speed and turbine/input shaft speed deviates by 300 rpm for 1,500 to 3,900 ms (varies with ATF temperature) while driving without shifting.
P0736:00
Gear reverse incorrect ratio
•  Speed ratio is 0.75 to 1.2 for 2,000 ms while vehicle is stopped in R position.
P0741:00
TCC control solenoid stuck off
•  Under the following conditions, difference in slip amount over 5 s compared to target slip amount is 200 rpm or more, and TCC feedback hydraulic pressure is 200 kPa {2.04 kgf/cm2, 29.0 psi} or more occurs:
―  Battery voltage is 8 V or more.
―  Selector lever position is D position.
―  No electrical malfunction in TCC control solenoid
―  During TCC or TCC feedback
―  DTC P0716:00 and P0717:00 are not recorded.
P0743:00
TCC control solenoid circuit malfunction
•  Under the following conditions, the TCM detects the TCC control solenoid circuit malfunction:
―  Battery voltage is 8 V or more.
P0746:00
Pressure control solenoid stuck off
•  Under the following conditions, pressure control solenoid stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0748:00
Pressure control solenoid circuit malfunction
•  Under the following conditions, the TCM detects the pressure control solenoid circuit malfunction:
―  Battery voltage is 8 V or more.
P0751:00
Shift solenoid No.1 stuck off
•  Under the following conditions, shift solenoid No.1 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0752:00
Shift solenoid No.1 stuck on
•  Under the following conditions, shift solenoid No.1 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0753:00
Shift solenoid No.1 circuit malfunction
•  Under the following conditions, the TCM detects the shift solenoid No.1 circuit malfunction:
―  Battery voltage is 8 V or more.
P0756:00
Shift solenoid No.2 stuck off
•  Under the following conditions, shift solenoid No.2 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0757:00
Shift solenoid No.2 stuck on
•  Under the following conditions, shift solenoid No.2 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0758:00
Shift solenoid No.2 circuit malfunction
•  Under the following conditions, the TCM detects the shift solenoid No.2 circuit malfunction:
―  Battery voltage is 8 V or more.
P0761:00
Shift solenoid No.3 stuck off
•  Under the following conditions, shift solenoid No.3 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0762:00
Shift solenoid No.3 stuck on
•  Under the following conditions, shift solenoid No.3 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0763:00
Shift solenoid No.3 circuit malfunction
•  Under the following conditions, the TCM detects the shift solenoid No.3 circuit malfunction:
―  Battery voltage is 8 V or more.
P0766:00
Shift solenoid No.4 stuck off
•  Under the following conditions, shift solenoid No.4 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0767:00
Shift solenoid No.4 stuck on
•  Under the following conditions, shift solenoid No.4 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0768:00
Shift solenoid No.4 circuit malfunction
•  Under the following conditions, the TCM detects the shift solenoid No.4 circuit malfunction:
―  Battery voltage is 8 V or more.
P0771:00
On/off solenoid stuck off
•  Under the following conditions, on/off solenoid stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0772:00
On/off solenoid stuck on
•  Under the following conditions, on/off solenoid stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0773:00
On/off solenoid circuit malfunction
•  Under the following conditions, the TCM detects the on/off solenoid circuit malfunction:
―  Battery voltage is 8 V or more.
P0780:00
Gear shifting malfunction
•  Gear ratio malfunction while in any gear 1st to 6th or clutch-slip DTC (P0729:00, P0731:00, P0732:00, P0733:00, P0734:00, P0735:00, P1728:00) occurs and vehicle is driven under gear ratio malfunction condition from fail-safe, or use of gear speeds in which clutch slip occurs is restricted.
•  Determined that vehicle may be in danger due to clutch not engaging by TCM direction according to signal from the oil pressure switch.
P079A:00
Shift solenoid No.3 stuck off/On/off solenoid stuck on
•  Under the following conditions, shift solenoid No.3 stuck-off or on/off solenoid stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0819:00
M position switch/Up switch/Down switch signal error
•  Under the following conditions, any of (1) to (4) conditions occurs for 1 s:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  Transaxle range sensor related DTC is not recorded.
(1) M position switch signal is on even though forward oil pressure switch is on in any position other than D position.
(2) M position switch signal is off even though up or down switch signal is on in D position.
(3) Up switch signal is on even though M position switch signal is off in any position other than D position.
(4) Down switch signal is on even though M position switch signal is off in any position other than D position.
P0842:00
Oil pressure switch No.1 stuck on
•  Under the following conditions, oil pressure switch No.1 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0843:00
Oil pressure switch No.1 stuck off
•  Under the following conditions, oil pressure switch No.1 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0847:00
Oil pressure switch No.2 stuck on
•  Under the following conditions, oil pressure switch No.2 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0848:00
Oil pressure switch No.2 stuck off
•  Under the following conditions, oil pressure switch No.2 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0872:00
Oil pressure switch No.3 stuck on
•  Under the following conditions, oil pressure switch No.3 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0873:00
Oil pressure switch No.3 stuck off
•  Under the following conditions, oil pressure switch No.3 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0877:00
Oil pressure switch No.4 stuck on
•  Under the following conditions, oil pressure switch No.4 stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0878:00
Oil pressure switch No.4 stuck off
•  Under the following conditions, oil pressure switch No.4 stuck-off detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P0882:00
TCM power supply voltage low
•  Under the following conditions, the TCM power supply voltage is 8—10.5 V (varies with ATF temperature) or less:
―  5 s or more has elapsed or battery voltage exceeds 11 V or more for 0.2 s since engine speed increases −200 rpm or more of target idle speed.
―  Selector lever position is D or R position.
P0883:00
TCM power supply voltage high
•  TCM power supply voltage is 18 V or more for 5 s.
P0C2C:00
Electric AT oil pump rotation malfunction
•  The actual electric AT oil pump rotation speed under the following condition is 100 rpm or less for a continuous 10 s:
―  Electric AT oil pump rotation speed command value is 500 rpm or more.
―  Electric AT oil pump relay is ON.
―  DTC P181F:00 is not recorded.
P1728:00
Clutch slippage
•  Under the following conditions, turbine/input shaft speed suddenly increases 300 rpm or more for 1,450 ms:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  Vehicle speed is 5 km/h {3 mph} or more.
―  There is no difference between vehicle speed signal from DSC HU/CM and output shaft speed sensor signal.
―  Not shifting
―  Selector lever position is D position.
―  Turbine/Input shaft speed is 1,200 rpm or more.
―  Oil pressure switch pattern (1st—6th) is normal.
P1738:00
Automatic transaxle internal malfunction
•  Malfunction location cannot be determined based on combination of gear ratio malfunction and oil pressure switch pattern malfunction.
P1784:00
Hi cut valve stuck off/R-3-5 cut valve stuck on
•  Under the following conditions, hi cut valve stuck-off or R-3-5 cut valve stuck-on detected by combination of gear ratio malfunction and oil pressure switch pattern malfunction:
―  Engine is running.
―  Battery voltage is 8 V or more.
―  ATF temperature is 20 °C {68 °F} or more.
P181F:00
Electric AT oil pump/Electric AT oil pump relay circuit malfunction
•  If the TCM detects any of the following conditions for a continuous 5 s:
―  Electric AT oil pump circuit has a malfunction.
―  Electric AT oil pump relay circuit has a malfunction.
P2712:00
Oil pump shift valve stuck
•  Under the following conditions, oil pressure switch No.1 OFF output continues for 10 s:
―  DTC P0753:00, P0C2C:00 and P181F:00 are not recorded.
―  During i-stop operation
―  Selector lever position is D or N position.
―  During electric AT oil pump operation
―  Oil pressure switch, low clutch and transaxle range sensor are normal.
―  Rate of speed change normal
U0073:00
CAN system communication error (HS CAN)
•  Under the following conditions, a communication error (HS CAN) occurs:
―  Battery voltage is 10 V or more.
U0074:00
CAN system communication error (local CAN between TCM and PCM)
•  Under the following conditions, a communication error (local CAN between TCM and PCM) occurs:
―  Battery voltage is 10 V or more.
U0100:00
Communication error to PCM (HS CAN)
•  Under the following conditions, the TCM cannot receive the signal from PCM (HS CAN):
―  Battery voltage is 10 V or more.
U0115:00
Communication error to PCM (local CAN between TCM and PCM)
•  Under the following conditions, the TCM cannot receive the signal from PCM (local CAN between TCM and PCM):
―  Battery voltage is 10 V or more.
U0121:00
Communication error to DSC HU/CM
•  Under the following conditions, the TCM cannot receive the signal from DSC HU/CM:
―  Battery voltage is 10 V or more.
U0141:00
Communication error to BCM
•  Under the following conditions, the TCM cannot receive the signal from BCM:
―  Battery voltage is 10 V or more.
U0155:00
Communication error to instrument cluster
•  Under the following conditions, the TCM cannot receive the signal from instrument cluster:
―  Battery voltage is 10 V or more.
U0442:00
Invalid data received from PCM (local CAN between TCM and PCM)
•  Under the following conditions, the TCM detects the invalid PCM signal for 0.5 s:
―  Battery voltage is 10 V or more.


Drive cycle

•  The drive cycle is the period of time from when the engine is started to the next time the engine is started.
•  One drive cycle, as shown in the figure, indicates the period from the time engine is started to the next time the engine is started. If this period is repeated twice it then becomes two drive cycles.
am3uun00002080
•  To detect DTCs, a required number of drive cycles for pre-detection has been set. For the number of drive cycles required for detection, refer to the DTC table.


Pending code

•  The pending code is temporary malfunction code which differs from DTCs which are recorded when the TCM detects a transaxle malfunction.
•  DTCs are recorded in the TCM according to the number of drive cycles when the TCM detects a transaxle malfunction. At the same time, pending code is recorded in the TCM regardless of the number of drive cycles.
•  Pending code recorded in the TCM is erased from the TCM, from the next drive cycle, when the TCM determines that the transaxle is normal.


Status byte for DTC

•  The status byte is the two-digit code (two digits after hyphen (-)) after the DTC.
am5uun00000323
•  The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.
•  The status byte can be read by performing a CMDTC self test using the M-MDS.
•  For details on the status byte, refer to the explanation on the M-MDS when reading the DTC.


Self-test function

•  When the self-test is implemented, the TCM performs diagnosis of the transaxle control system. If a malfunction is detected with the results of the diagnosis, an applicable DTC is recorded. A recorded DTC can be read by the M-MDS.
•  By implementing the self-test function, verification of the current malfunction and verification after repair is facilitated.
CMDTC (Continuous Memory Diagnostic Trouble Code) self-test
•  The CMDTC self-test is a function which reads all DTCs recorded in the TCM after the previous DTCs are erased no matter whether they are past malfunctions or current malfunctions.
KOEO (Key On Engine Off) self-test
•  The KOEO self-test can perform malfunction diagnosis of DTCs corresponding to this self-test function when the ignition is switched ON and the engine is stopped. This self-test implements based on the test implementation command signal sent to the TCM from the M-MDS.


Freeze frame data/Snapshot data

Freeze frame data
•  The freeze frame data consists of data for vehicle and transaxle control system operation conditions when malfunctions in the transaxle control system are detected and stored in the TCM.
•  Freeze frame data is stored at the instant the malfunction indicator lamp illuminates, and only a part of the DTC data is stored.
Snapshot data
•  The data for all DTCs currently detected is stored.
Recorded DTC timing
―  For DTCs with one drive cycle, data is recorded during the malfunction determination period.
―  For DTCs with two drive cycles, data is recorded during non-determination (1st diagnosis) periods.

Freeze frame data item table

—: Not applicable

Freeze frame data item

Unit

Description

Corresponding PID/DATA monitor item

LOAD
%
Calculated engine load
LOAD
ECT
°C {°F}
Engine coolant temperature
ECT
RPM
RPM
Engine speed
RPM
VS
KPH {MPH}
Vehicle speed
VSS
SPARKADV
°
Ignition timing
SPARKADV
IAT
°C {°F}
Intake air temperature
IAT
TP
%
Throttle valve position No.1
TP
RUNTM
hh:mm:ss
Time from engine start
VPWR
V
Module supply voltage
VPWR
APP_D
%
Accelerator pedal position No.1
APP1

Snapshot data item table

—: Not applicable

Snapshot data item

Unit

Description

Corresponding PID/DATA monitor item

LOAD
%
Calculated engine load
LOAD
ECT
°C {°F}
Engine coolant temperature
ECT
RPM
RPM
Engine speed
RPM
VSS
KPH {MPH}
Vehicle speed
VSS
IAT
°C {°F}
Intake air temperature
IAT
EG_RUN_TIME
Time from engine start
VPWR
V
Module supply voltage
VPWR
APP1
%
Accelerator pedal position No.1
APP1
GEAR_SEL
1/2/3/4/5/6
Gear shift position
GEAR_SEL
TSS
RPM
Turbine/input shaft speed
TSS
TFT
°C {°F}
ATF temperature
TFT
OSS
RPM
Output shaft speed
OSS
LOCK_UP
OFF/SLIP/On
Torque converter (TCC condition)
LOCK_UP
OIL_PRES_SW2
Off/On
Oil pressure switch No.2 condition
OP_SW2
OIL_PRES_SW1
Off/On
Oil pressure switch No.1 condition
OP_SW1
SS_ON_OFF
Off/On
On/off solenoid condition
SS_ON-OFF
APP
%
Accelerator pedal position No.1
APP1
G_INHIBIT_6
Off/On
6GR is inhibited due to malfunction.
G_INHIBIT_5
Off/On
5GR is inhibited due to malfunction.
G_INHIBIT_4
Off/On
4GR is inhibited due to malfunction.
G_INHIBIT_3
Off/On
3GR is inhibited due to malfunction.
G_INHIBIT_2
Off/On
2GR is inhibited due to malfunction.
G_INHIBIT_1
Off/On
1GR is inhibited due to malfunction.
G_INHIBIT_R
Off/On
R position is inhibited due to malfunction.
G_INHIBIT_N
Off/On
N position is inhibited due to malfunction.
OIL_PRES_SW4
Off/On
Oil pressure switch No.4 condition
OP_SW4
OIL_PRES_SW3
Off/On
Oil pressure switch No.3 condition
OP_SW3
EOP_RLY
Off/On
Electric AT oil pump relay condition
EOP_RLY
SHIFT_CTRL
DEFAULT/MANUAL/C_CONTROL/HIGH_TEMP/D_MANUAL/FAIL_SAFE
Shift control mode
SHIFT_CTRL
SLIP_VALUE
RPM
Actual slip value between TSS and OSS
HTM_DIS
km {mile}
Travel distance since determination of ATF high temperature mode
HTM_DIS
