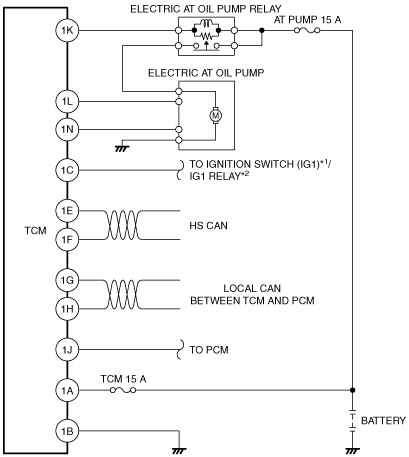

ON-BOARD DIAGNOSTIC SYSTEM WIRING DIAGRAM [FW6A-EL]

id050225290000

am3zzw00012692

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
