A/C UNIT DISASSEMBLY/ASSEMBLY

id071100800300

1. Disassemble in the order indicated in the table.

Caution

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

2. Assemble in the reverse order of disassembly.

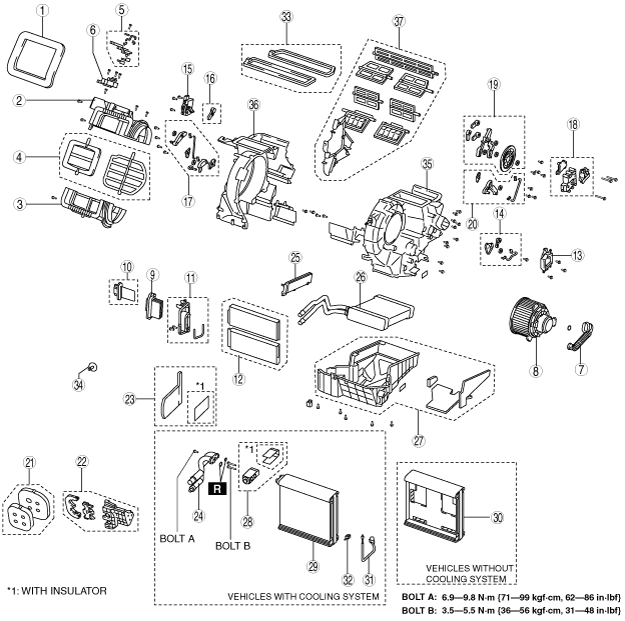

L.H.D.

am3zzw00010961

Step

Part name

Disassembly/assembly of main parts

Heater core

Evaporator temperature sensor

Evaporator

1

Adhesive polyurethane (1)

—

—

—

2

Blower case (1)

—

—

—

3

Blower case (2)

—

—

—

4

Air intake door

—

—

—

5

Air intake link set

—

—

—

6

Air intake actuator

—

—

—

7

Blower motor pipe

—

—

—

8

Blower motor

—

—

—

9

Power MOS FET (Full-auto air conditioner)

—

—

—

10

Resistor (Manual air conditioner)

—

—

—

11

Plate

—

X

X

12

Air filter

—

X

X

13

Driver-side air mix actuator (Full-auto air conditioner)

—

—

—

14

Driver-side air mix link set (Full-auto air conditioner)

—

—

—

15

Passenger-side air mix actuator (Full-auto air conditioner)

—

—

—

16

Passenger-side air mix link (Full-auto air conditioner)

—

—

—

17

Air mix link set (Manual air conditioner)

—

—

—

18

Airflow mode actuator (Full-auto air conditioner)

—

—

—

19

Airflow mode link set

—

—

—

20

Airflow mode link set (Manual air conditioner)

—

—

—

21

Polyurethane foam (1)

X

X

X

22

Plate cover

X

X

X

23

Adhesive polyurethane (2)

(See Adhesive Polyurethane (2) Assembly Note.)

X

X

X

24

Evaporator pipe

X

X

X

25

Cover

X

X

X

26

Heater core

—

X

X

27

A/C case (1)

—

X

X

28

Expansion valve

—

X

X

29

Evaporator

—

—

—

30

A/C case (2)

—

—

—

31

Evaporator temperature sensor

(See Evaporator Temperature Sensor Assembly Note.)

—

—

—

32

Clip

—

—

—

33

Polyurethane foam (2)

—

—

—

34

Bolt

—

—

—

35

A/C case (3)

—

—

X

36

A/C case (4)

—

—

X

37

Door damper

—

—

—

Step	Part name	Disassembly/assembly of main parts
1	Adhesive polyurethane (1)	—	—	—
2	Blower case (1)	—	—	—
3	Blower case (2)	—	—	—
4	Air intake door	—	—	—
5	Air intake link set	—	—	—
6	Air intake actuator	—	—	—
7	Blower motor pipe	—	—	—
8	Blower motor	—	—	—
9	Power MOS FET (Full-auto air conditioner)	—	—	—
10	Resistor (Manual air conditioner)	—	—	—
11	Plate	—	X	X
12	Air filter	—	X	X
13	Driver-side air mix actuator (Full-auto air conditioner)	—	—	—
14	Driver-side air mix link set (Full-auto air conditioner)	—	—	—
15	Passenger-side air mix actuator (Full-auto air conditioner)	—	—	—
16	Passenger-side air mix link (Full-auto air conditioner)	—	—	—
17	Air mix link set (Manual air conditioner)	—	—	—
18	Airflow mode actuator (Full-auto air conditioner)	—	—	—
19	Airflow mode link set	—	—	—
20	Airflow mode link set (Manual air conditioner)	—	—	—
21	Polyurethane foam (1)	X	X	X
22	Plate cover	X	X	X
23	Adhesive polyurethane (2) (See Adhesive Polyurethane (2) Assembly Note.)	X	X	X
24	Evaporator pipe	X	X	X
25	Cover	X	X	X
26	Heater core	—	X	X
27	A/C case (1)	—	X	X
28	Expansion valve	—	X	X
29	Evaporator	—	—	—
30	A/C case (2)	—	—	—
31	Evaporator temperature sensor (See Evaporator Temperature Sensor Assembly Note.)	—	—	—
32	Clip	—	—	—
33	Polyurethane foam (2)	—	—	—
34	Bolt	—	—	—
35	A/C case (3)	—	—	X
36	A/C case (4)	—	—	X
37	Door damper	—	—	—

X: Applicable

-: Not applicable

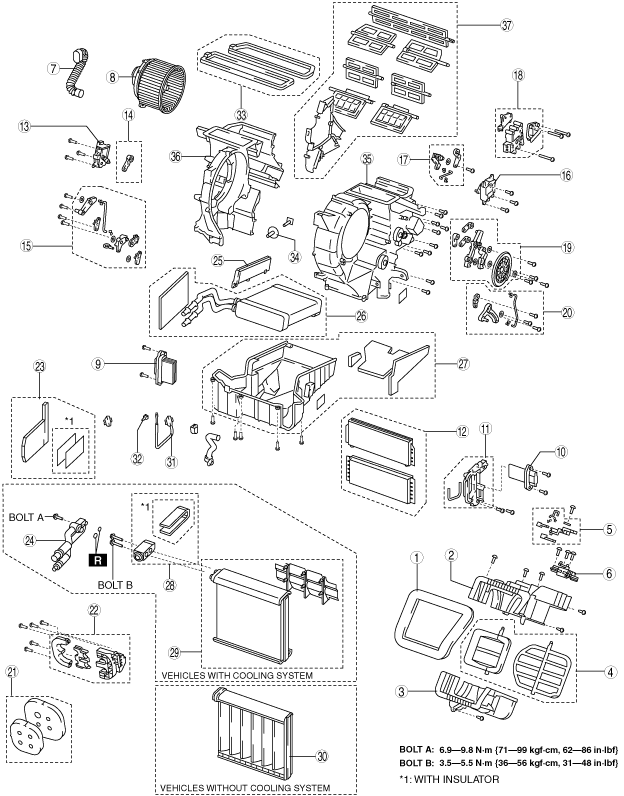

R.H.D.

am3zzw00010962

Step

Part name

Disassembly/assembly of main parts

Heater core

Evaporator temperature sensor

Evaporator

1

Adhesive polyurethane (1)

—

—

—

2

Blower case (1)

—

—

—

3

Blower case (2)

—

—

—

4

Air intake door

—

—

—

5

Air intake link set

—

—

—

6

Air intake actuator

—

—

—

7

Blower motor pipe

—

—

—

8

Blower motor

—

—

—

9

Power MOS FET (Full-auto air conditioner)

—

—

—

10

Resistor (Manual air conditioner)

—

—

—

11

Plate

—

X

X

12

Air filter

—

X

X

13

Driver-side air mix actuator (Full-auto air conditioner)

—

—

—

14

Driver-side air mix link (Full-auto air conditioner)

—

—

—

15

Air mix link set (Manual air conditioner)

—

—

—

16

Passenger-side air mix actuator (Full-auto air conditioner)

—

—

—

17

Passenger-side air mix link set (Full-auto air conditioner)

—

—

—

18

Airflow mode actuator (Full-auto air conditioner)

—

—

—

19

Airflow mode link set

—

—

—

20

Airflow mode link set (Manual air conditioner)

—

—

—

21

Polyurethane foam (1)

X

X

X

22

Plate cover

X

X

X

23

Adhesive polyurethane (2)

(See Adhesive Polyurethane (2) Assembly Note.)

X

X

X

24

Evaporator pipe

X

X

X

25

Cover

X

X

X

26

Heater core

—

X

X

27

A/C case (1)

—

X

X

28

Expansion valve

—

X

X

29

Evaporator

—

—

—

30

A/C case (2)

—

—

—

31

Evaporator temperature sensor

(See Evaporator Temperature Sensor Assembly Note.)

—

—

—

32

Clip

—

—

—

33

Polyurethane foam (2)

—

—

—

34

Bolt

—

—

—

35

A/C case (3)

—

—

X

36

A/C case (4)

—

—

X

37

Door damper

—

—

—

Step	Part name	Disassembly/assembly of main parts
1	Adhesive polyurethane (1)	—	—	—
2	Blower case (1)	—	—	—
3	Blower case (2)	—	—	—
4	Air intake door	—	—	—
5	Air intake link set	—	—	—
6	Air intake actuator	—	—	—
7	Blower motor pipe	—	—	—
8	Blower motor	—	—	—
9	Power MOS FET (Full-auto air conditioner)	—	—	—
10	Resistor (Manual air conditioner)	—	—	—
11	Plate	—	X	X
12	Air filter	—	X	X
13	Driver-side air mix actuator (Full-auto air conditioner)	—	—	—
14	Driver-side air mix link (Full-auto air conditioner)	—	—	—
15	Air mix link set (Manual air conditioner)	—	—	—
16	Passenger-side air mix actuator (Full-auto air conditioner)	—	—	—
17	Passenger-side air mix link set (Full-auto air conditioner)	—	—	—
18	Airflow mode actuator (Full-auto air conditioner)	—	—	—
19	Airflow mode link set	—	—	—
20	Airflow mode link set (Manual air conditioner)	—	—	—
21	Polyurethane foam (1)	X	X	X
22	Plate cover	X	X	X
23	Adhesive polyurethane (2) (See Adhesive Polyurethane (2) Assembly Note.)	X	X	X
24	Evaporator pipe	X	X	X
25	Cover	X	X	X
26	Heater core	—	X	X
27	A/C case (1)	—	X	X
28	Expansion valve	—	X	X
29	Evaporator	—	—	—
30	A/C case (2)	—	—	—
31	Evaporator temperature sensor (See Evaporator Temperature Sensor Assembly Note.)	—	—	—
32	Clip	—	—	—
33	Polyurethane foam (2)	—	—	—
34	Bolt	—	—	—
35	A/C case (3)	—	—	X
36	A/C case (4)	—	—	X
37	Door damper	—	—	—

X: Applicable

-: Not applicable

Evaporator Temperature Sensor Assembly Note

MZ-CD 1.6, SKYACTIV-G 2.0

1. Install the evaporator temperature sensor as shown in the figure.

am3zzw00006706

Except MZ-CD 1.6, SKYACTIV-G 2.0

1. Assemble the evaporator temperature sensor as shown in the figure.

am3zzw00010963

Caution

• When installing the evaporator temperature sensor without replacing the evaporator, assemble the evaporator temperature sensor with the installation position slid to the left of the previous position by 1 line. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.

Note

• Replace the evaporator in which the evaporator temperature sensor cannot be correctly positioned.

Adhesive Polyurethane (2) Assembly Note

1. Wrap the low-pressure side of the evaporator pipe with insulator. (With insulator)

am3uuw00004004

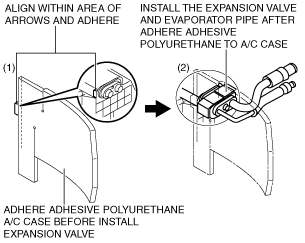

2. Assemble the adhesive polyurethane as shown in the figure.

am3uuw00004005

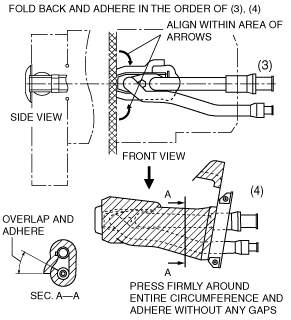

am3zzw00006948
