MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1800600

Except MZ-CD 1.6

1.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

MZR 1.5, MZR 1.6

am3zzw00011007

SKYACTIV-G 2.0

am3zzw00011008

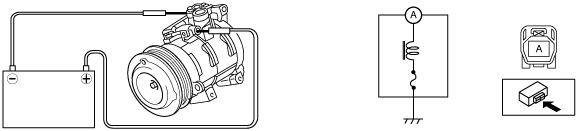

MZR 2.0, MZR 2.0 DISI i-stop

am3zzw00011009

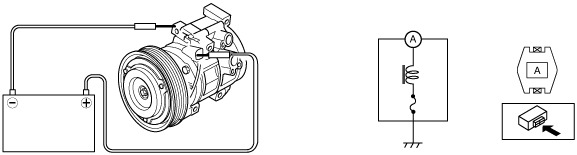

MZR 2.3 DISI Turbo, MZR 2.5

am3zzw00011010

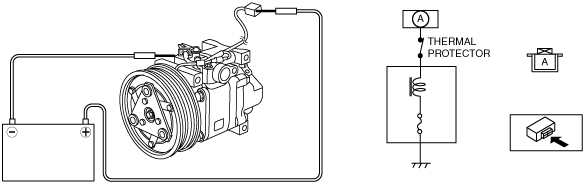

MZR-CD 2.2

am3zzw00006725

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.

MZ-CD 1.6

1.  Connect battery to terminal A of magnetic clutch and ground to terminal B of magnetic clutch.

am3zzw00011011

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.
