REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1802700

1.  Install the SST (gas charge set).

2.  Disconnect the refrigerant pressure switch connector.

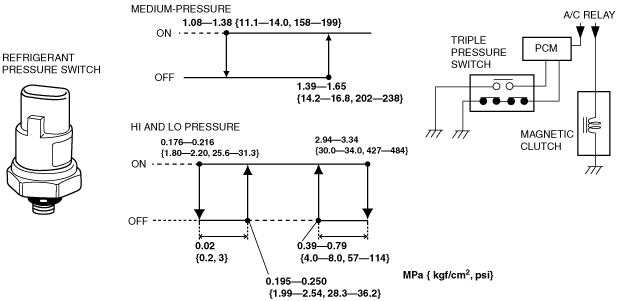

3.  Verify the high-pressure side reading of the SST (manifold gauge) and continuity between the refrigerant pressure switch terminals.

am3zzw00015326

am3zzn00002234

•  If there is any malfunction, replace the refrigerant pressure switch.
