REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1817400

SKYACTIV-G 2.0

1.  Install the SST (gas charge set).

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage of the PCM.

―  2BB, 2AX and 2AJ

4.  Verify that below graph as measure the terminal voltage 2AX.

5.  Follow the PCM inspection when measure the other terminal voltage. (See PCM INSPECTION [SKYACTIV-G 2.0].)

•  Terminal 2BB: 1.0 V or less

•  Terminal 2AJ: Approx. 5 V (Ignition switch on)

―  If the each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If wiring harness is normal, replace the refrigerant pressure sensor.

am3zzw00011026

European (L.H.D. U.K.) specs. (Except MZ-CD 1.6)

1.  Install the SST (gas charge set).

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage of the climate control unit.

―  2C, 2N and 2J

4.  Verify that below graph as measure the terminal voltage 2J.

5.  Follow the climate control unit inspection when measure the other terminal voltage. (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)

•  Terminal 2N: 1.0 V or less

•  Terminal 2C: Approx. 5 V (Ignition switch on)

―  If the each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If wiring harness is normal, replace the refrigerant pressure sensor.

am3zzw00011027

European (L.H.D. U.K.) specs. (MZ-CD 1.6)

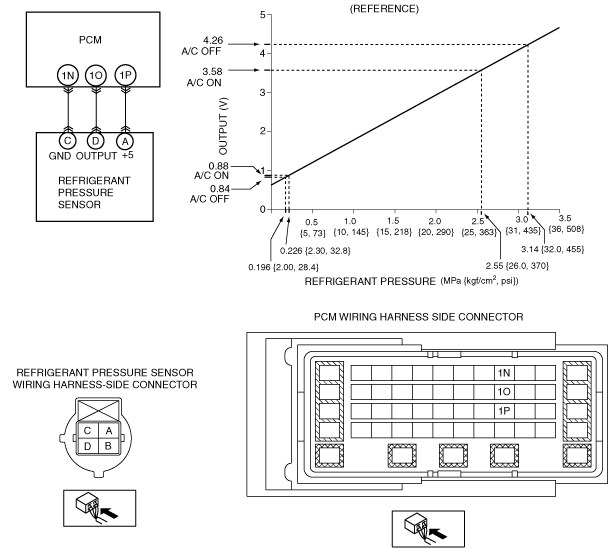

1.  Install the SST (gas charge set).

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage of the PCM.

―  1N, 1O and 1P

4.  Verify that below graph as measure the terminal voltage 1O.

5.  Follow the PCM inspection when measure the other terminal voltage. (See PCM INSPECTION [MZ-CD 1.6].)

•  Terminal 1N: 1.0 V or less

•  Terminal 1P: Approx. 5 V (Ignition switch on)

―  If the each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If wiring harness is normal, replace the refrigerant pressure sensor.

am3zzw00011028

Australian, General (L.H.D. R.H.D.) specs.

1.  Install the SST (gas charge set).

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage of the climate control unit.

―  1C, 1E and 2J

4.  Verify that below graph as measure the terminal voltage 2J.

5.  Follow the climate control unit inspection when measure the other terminal voltage. (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)

•  Terminal 1E: 1.0 V or less

•  Terminal 1C: Approx. 5 V (Ignition switch on)

―  If the each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If wiring harness is normal, replace the refrigerant pressure sensor.
