CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]

id0740a2802000

1.  Disassemble in the order indicated in the figure.

am3uuw00004091

1	Dial
2	Airflow mode wire (See Wire Removal Note.) (See Wire Installation Note.)
3	Air mix wire (See Wire Removal Note.) (See Wire Installation Note.)
4	Bulb
5	Fan switch (See Fan Switch Removal Note.)
6	Climate control unit

2.  Assemble in the reverse order of disassembly.

Wire Removal Note

1.  Remove in the order indicated in the figure.

am3zzw00012005

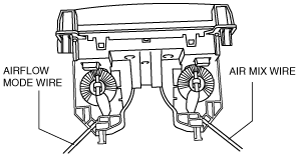

Wire Installation Note

1.  Install as shown in the figure.

am3zzw00008205

Fan Switch Removal Note

1.  Pull up the tab (1) and remove the fan switch (2).

am3zzw00011054
