AIR BAG SYSTEM

id081000500100

Outline

• The air bag system is a device that supplements the passenger restraint function of the seat belts. The air bag system will not have the designed effect if the seat belts are not worn properly.

• The air bag system is composed of the following parts:

Item

Outline

SAS control module

•  A yaw rate sensor and a low-G (XY) sensor has been added. (Vehicles with DSC)

•  Recognizes actually equipped air bag module or pre-tensioner seat belt based on module configuration.

Crash zone sensor

•  Detects degree of impact, converts to an electrical signal, and sends the signal to the SAS control module.

Side air bag sensor^*1

Driver-side air bag module

•  Adopted to improve safety in frontal collisions.

Passenger-side air bag module

Side air bag module*1

•  Chest-protection type side air bag module is used in accordance with the adoption of the curtain air bag module.

Curtain air bag module*1

•  Adopted to improve safety in lateral collisions.

Pre-tensioner seat belt

•  Gear-type pre-tensioner seat belt has been adopted.

Lap pre-tensioner seat belt^*2

•  Wire-type lap pre-tensioner seat belt has been adopted.

PAD switch^*3

•  PAD switch has been adopted enabling optional deactivation of passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.

PAD indicator^*3

•  PAD indicator has been adopted to inform driver and front passenger of the deployment standby status of the passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.

Air bag system warning light

•  LED has been adopted.

Item	Outline
SAS control module	• A yaw rate sensor and a low-G (XY) sensor has been added. (Vehicles with DSC) • Recognizes actually equipped air bag module or pre-tensioner seat belt based on module configuration.
Crash zone sensor	• Detects degree of impact, converts to an electrical signal, and sends the signal to the SAS control module.
Side air bag sensor^*1
Driver-side air bag module	• Adopted to improve safety in frontal collisions.
Passenger-side air bag module
Side air bag module*1	• Chest-protection type side air bag module is used in accordance with the adoption of the curtain air bag module.
Curtain air bag module*1	• Adopted to improve safety in lateral collisions.
Pre-tensioner seat belt	• Gear-type pre-tensioner seat belt has been adopted.
Lap pre-tensioner seat belt^*2	• Wire-type lap pre-tensioner seat belt has been adopted.
PAD switch^*3	• PAD switch has been adopted enabling optional deactivation of passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.
PAD indicator^*3	• PAD indicator has been adopted to inform driver and front passenger of the deployment standby status of the passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.
Air bag system warning light	• LED has been adopted.

*1 :Vehicles with side air bag system

*2 :Vehicles with lap pre-tensioner seat belt

*3 :Vehicles with PAD switch

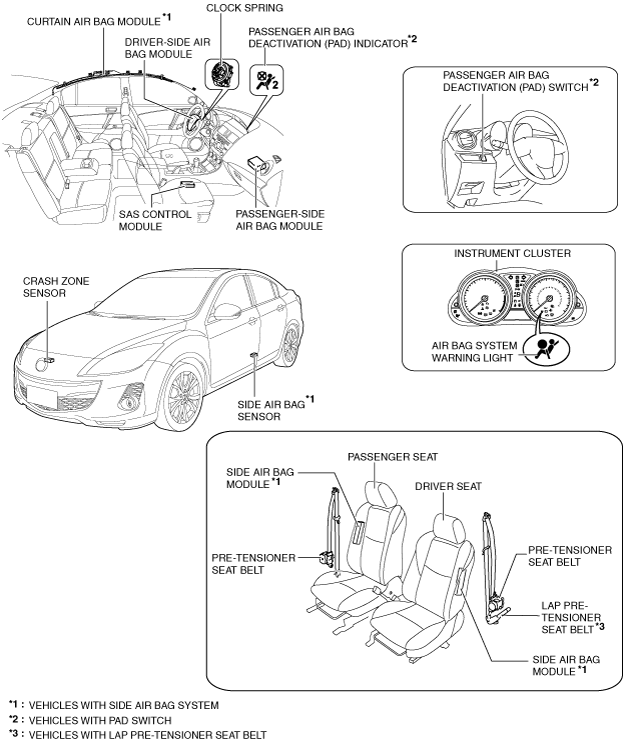

Structural View

am3zzn00003217

Wiring Diagram

am3zzn00003218
