DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR-CD 2.2, MZR 2.0 DISI i-stop))]

id0902m8837900

Caution
•  Perform the following malfunction diagnosis only when it is diagnosed with an open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR-CD 2.2, MZR 2.0 DISI i-stop))].
•  If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.
•  When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1.  Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2.  Apply the communication error DTC and the failed module to DTC output pattern and malfunctioning part, and select the possible cause for the diagnostic result and the reference for the inspection item.

Note
•  The open circuit location can be determined by the DTCs indicated in DTC output pattern and malfunctioning part chart. DTCs not listed in the chart are not used for the determination of the open circuit location.

3.  Inspect the possible cause and inspection item of the applicable malfunctioning part.

4.  After repairing, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR-CD 2.2, MZR 2.0 DISI i-stop))] and verify that the repairs have been completed.


DTC output pattern and malfunctioning part

Cross (×): Communication error-related DTC and failed module

M-MDS display

DTC output pattern and malfunctioning part

DTC output module

DTC
PCM
(PCM [MZR 2.0 DISI i-stop])
U0121:00



×












U0131:00

×














U0140:00





×










U0155:00















×
U0214:00











×




PCM
(PCM [MZR-CD 2.2])
U0121:00



×












U0155:00















×
EPS
(EHPAS control module)
U0100
×















U0140





×










U0155















×
ABS
(DSC HU/CM)
U0100:00
×

×













U0140:00





×










U0155:00















×
BCM/GEM
(BCM)
U0100:00
×

×

×











U0121:00



×
×











U0151:00









×






U0214:00











×




RVM*1
(Rear vehicle monitoring control module (RH))
U0100:00
×

×

×

×









U0121:00



×
×

×









U0140:00





×
×









U0155:00















×
RCM
(SAS control module)
U0155















×
RKE*2
(Keyless control module)
U0100:00
×

×

×

×

×

×





U0121:00



×
×

×

×

×





AFS*3
(AFS control module)
U0100:00
×

×

×

×

×

×

×



U0140:00





×
×

×

×

×



IC
(Instrument cluster)
U0100:00
×

×

×

×

×

×

×

×

U0121:00



×
×

×

×

×

×

×

U0131:00

×
×

×

×

×

×

×

×

U0140:00





×
×

×

×

×

×

U0151:00









×
×

×

×

U0182:00













×
×

U0214:00











×
×

×

U0232:00







×
×

×

×

×

M-MDS display module
[Fail] display pattern
PCM
×

×

×

×

×

×

×

×

EPS

×
×

×

×

×

×

×

×

ABS



×
×

×

×

×

×

×

BCM/GEM





×
×

×

×

×

×

RVM*1







×
×

×

×

×

RCM









×
×

×

×

RKE*2











×
×

×

AFS*3













×
×

IC















×
Diagnostic result
Possible cause and inspection item
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Reference page
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P

*1  :With rear vehicle monitoring system
*2  :With advanced keyless entry and push button start system
*3  :With AFS (adaptive front lighting system)

A


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between PCM and branch A
•  PCM malfunction


System wiring diagram

am3zzw00010480


Inspection item

•  PCM connector
•  Wiring harness between PCM terminal 1AM and branch A (MZR 2.0 DISI i-stop)
•  Wiring harness between PCM terminal 1AI and branch A (MZR 2.0 DISI i-stop)
•  Wiring harness between PCM terminal 2AD and branch A (MZR-CD 2.2)
•  Wiring harness between PCM terminal 2AH and branch A (MZR-CD 2.2)
•  PCM


B


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

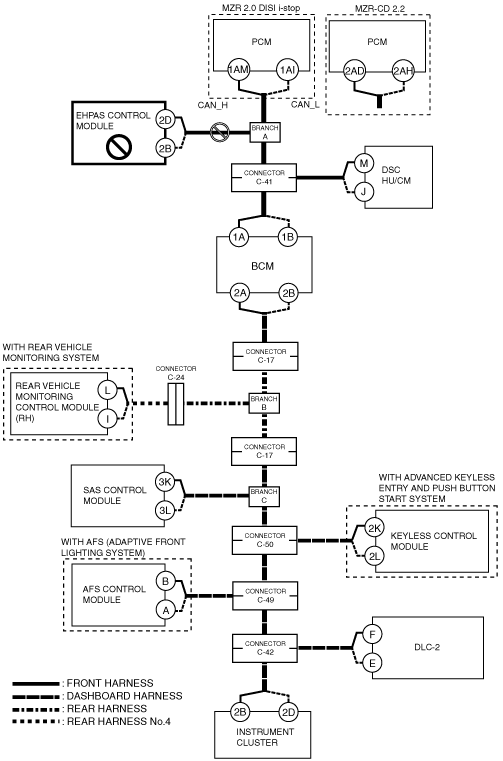

•  Open circuit in wiring harness between EHPAS control module and branch A
•  EHPAS control module malfunction


System wiring diagram

am3zzw00010481


Inspection item

•  EHPAS control module connector
•  Wiring harness between EHPAS control module terminal 2D and branch A
•  Wiring harness between EHPAS control module terminal 2B and branch A
•  EHPAS control module


C


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between branch A and connector C-41


System wiring diagram

am3zzw00010482


Inspection item

•  Connector C-41
•  Wiring harness between branch A and connector C-41


D


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between DSC HU/CM and connector C-41
•  Connector C-41 malfunction
•  DSC HU/CM malfunction


System wiring diagram

am3zzw00010483


Inspection item

•  DSC HU/CM connector
•  Wiring harness between DSC HU/CM terminal M and connector C-41
•  Wiring harness between DSC HU/CM terminal J and connector C-41
•  Connector C-41
•  DSC HU/CM


E


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

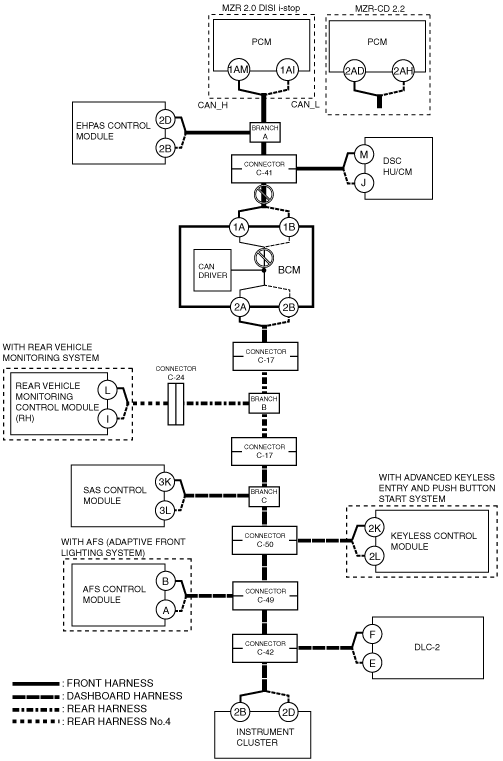

•  Open circuit in wiring harness between connector C-41 and BCM
•  BCM malfunction


System wiring diagram

am3zzw00010484


Inspection item

•  BCM connector
•  Wiring harness between connector C-41 and BCM terminal 1A
•  Wiring harness between connector C-41 and BCM terminal 1B
•  BCM

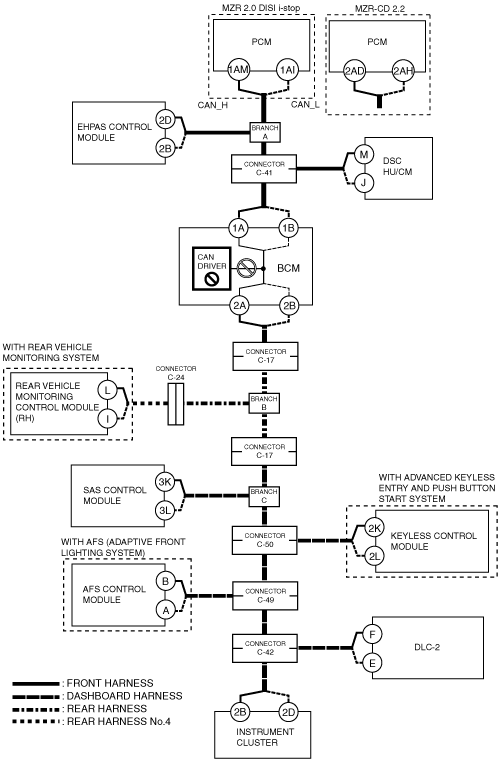

―  Between BCM terminals 1A and 2A
―  Between BCM terminals 1B and 2B


F


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  BCM malfunction


System wiring diagram

am3zzw00010485


Inspection item

•  BCM


G


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between BCM and connector C-17
•  Open circuit in wiring harness between connector C-17 and branch B
•  Connector C-17 malfunction
•  BCM malfunction


System wiring diagram

am3zzw00010486


Inspection item

•  BCM connector
•  Connector C-17
•  Wiring harness between BCM terminal 2A and connector C-17
•  Wiring harness between BCM terminal 2B and connector C-17
•  Wiring harness between connector C-17 and branch B
•  BCM
―  Between BCM terminals 1A and 2A
―  Between BCM terminals 1B and 2B


H


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between rear vehicle monitoring control module (RH) and connector C-24
•  Open circuit in wiring harness between connector C-24 and branch B
•  Connector C-24 malfunction
•  Rear vehicle monitoring control module (RH) malfunction


System wiring diagram

am3zzw00010487


Inspection item

•  Rear vehicle monitoring control module (RH) connector
•  Connector C-24
•  Wiring harness between rear vehicle monitoring control module (RH) terminal L and connector C-24
•  Wiring harness between rear vehicle monitoring control module (RH) terminal I and connector C-24
•  Wiring harness between connector C-24 and branch B
•  Rear vehicle monitoring control module (RH)


I


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

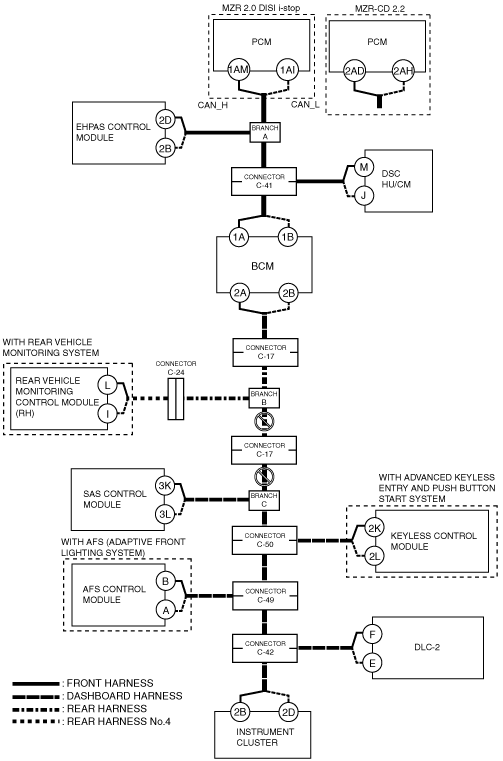

•  Open circuit in wiring harness between branch B and connector C-17
•  Open circuit in wiring harness between connector C-17 and branch C
•  Connector C-17 malfunction


System wiring diagram

am3zzw00010488


Inspection item

•  Connector C-17
•  Wiring harness between branch B and connector C-17
•  Wiring harness between connector C-17 and branch C


J


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between SAS control module and branch C
•  SAS control module malfunction


System wiring diagram

am3zzw00010489


Inspection item

•  SAS control module connector
•  Wiring harness between SAS control module terminal 3K and branch C
•  Wiring harness between SAS control module terminal 3L and branch C
•  SAS control module


K


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

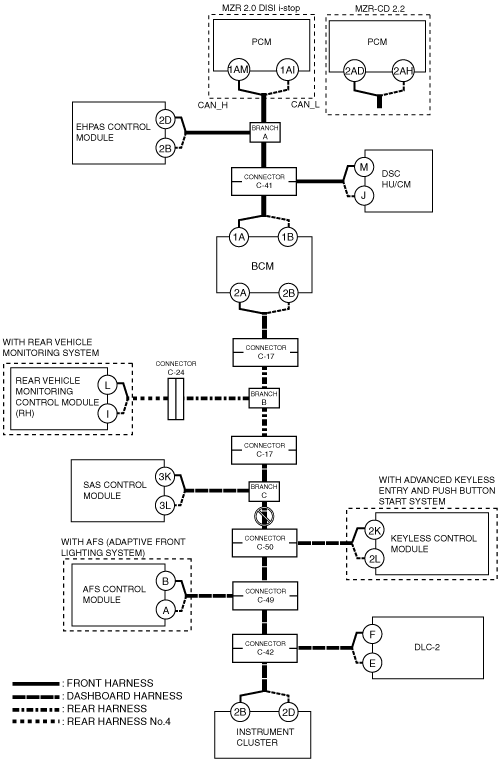

•  Open circuit in wiring harness between branch C and connector C-50
•  Connector C-50 malfunction


System wiring diagram

am3zzw00010490


Inspection item

•  Connector C-50
•  Wiring harness between branch C and connector C-50


L


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between keyless control module and connector C-50
•  Connector C-50 malfunction
•  Keyless control module malfunction


System wiring diagram

am3zzw00010491


Inspection item

•  Keyless control module connector
•  Connector C-50
•  Wiring harness between keyless control module terminal 2K and connector C-50
•  Wiring harness between keyless control module terminal 2L and connector C-50
•  Keyless control module


M


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between connector C-50 and connector C-49
•  Connector C-50 malfunction
•  Connector C-49 malfunction


System wiring diagram

am3zzw00010492


Inspection item

•  Connector C-50
•  Connector C-49
•  Wiring harness between connector C-50 and connector C-49


N


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

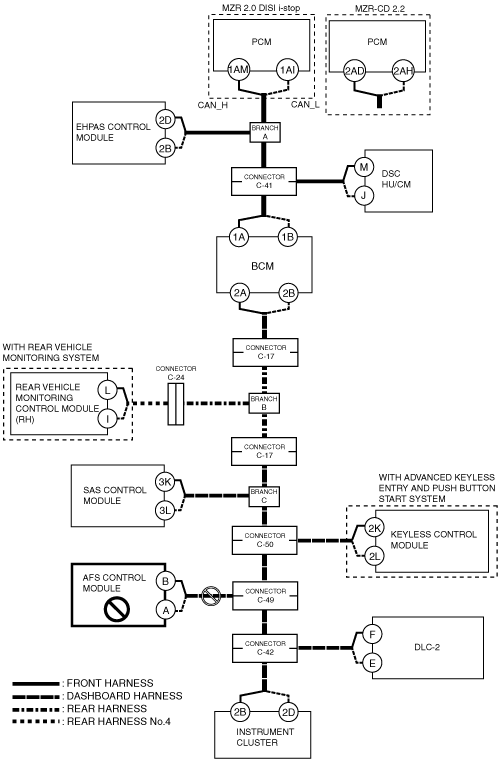

•  Open circuit in wiring harness between AFS control module and connector C-49
•  Connector C-49 malfunction
•  AFS control module malfunction


System wiring diagram

am3zzw00010493


Inspection item

•  AFS control module connector
•  Connector C-49
•  Wiring harness between AFS control module terminal B and connector C-49
•  Wiring harness between AFS control module terminal A and connector C-49
•  AFS control module


O


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

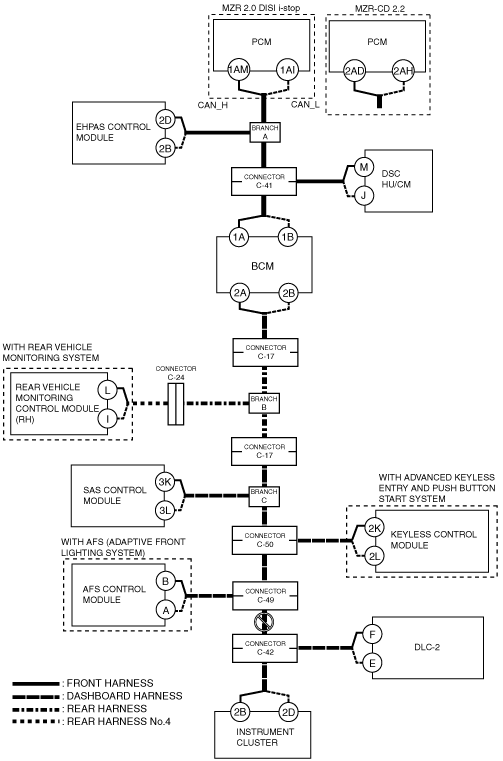

•  Open circuit in wiring harness between connector C-49 and connector C-42
•  Connector C-49 malfunction
•  Connector C-42 malfunction


System wiring diagram

am3zzw00010494


Inspection item

•  Connector C-49
•  Connector C-42
•  Wiring harness between connector C-49 and connector C-42


P


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

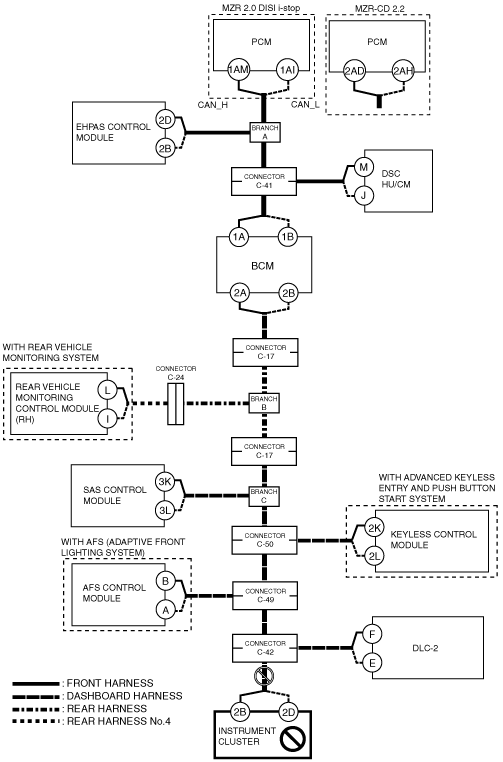

•  Open circuit in wiring harness between connector C-42 and instrument cluster
•  Connector C-42 malfunction
•  Instrument cluster malfunction


System wiring diagram

am3zzw00010495


Inspection item

•  Instrument cluster connector
•  Connector C-42
•  Wiring harness between connector C-42 and instrument cluster terminal 2B
•  Wiring harness between connector C-42 and instrument cluster terminal 2D
•  Instrument cluster
