TROUBLESHOOTING INDEX [RADIO]

id0903e3801000

No.	Symptom	Possible DTC
		Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
1	NO.1 NO RADIO RECEPTION (AM/FM)/NO OR LOW VOLUME [RADIO]	U3003:16, U3000:04	09:Er20, 09:Er22
2	NO.2 NOISE FROM RADIO (AM ONLY) [RADIO]	U3000:04	09:Er22
3	NO.3 NOISE FROM RADIO (FM ONLY) [RADIO]	U3000:04	09:Er22
4	NO.4 CANNOT TUNE (SEEK DOES NOT STOP) [RADIO]	U3003:16, U3000:04	09:Er20, 09:Er22
5	NO.5 CANNOT PRESET (PRESET FUNCTION DOES NOT OPERATE) [RADIO]	—	—
6	NO.6 RECEPTION FREQUENCY OF RADIO SLIPS [RADIO]	U3000:04	09:Er22

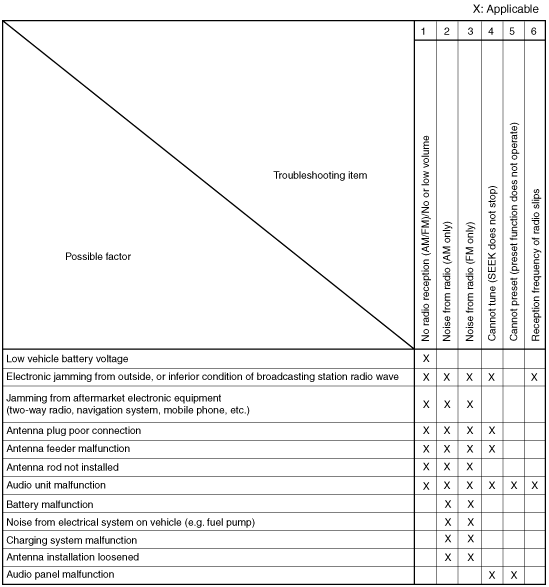

Quick Diagnostic Chart

am3zzw00011061
