TROUBLESHOOTING INDEX [CD PLAYER/CHANGER]

id0903e5801000

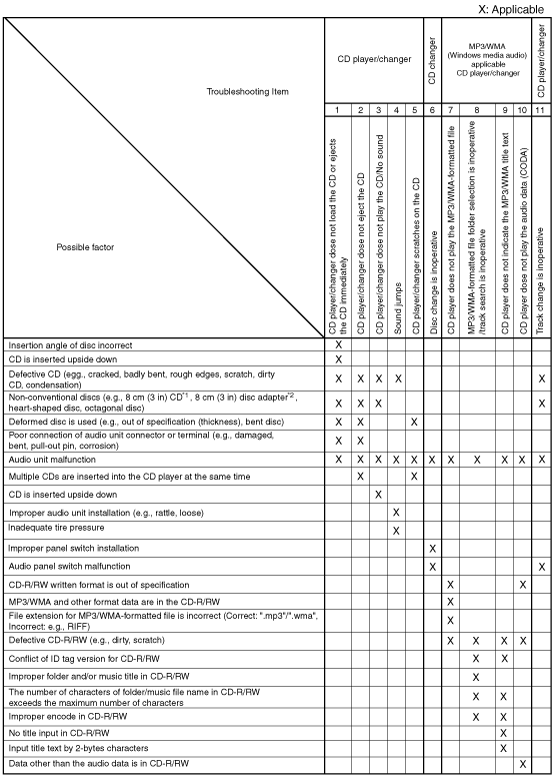

Troubleshooting Index

No.	Items	Symptom	Possible DTC
			Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
1	CD player/changer	NO.1 CD PLAYER/CHANGER DOES NOT LOAD THE CD OR EJECTS THE CD IMMEDIATELY [CD PLAYER/CHANGER]	B1D19:79	10:Er01, 22:Er01
2		NO.2 CD PLAYER/CHANGER DOES NOT EJECT THE CD [CD PLAYER/CHANGER]	B1D19:79	10:Er01, 22:Er01
3		NO.3 CD PLAYER/CHANGER DOES NOT PLAY THE CD/NO SOUND [CD PLAYER/CHANGER]	B1188:64	10:Er07, 22:Er07
4		NO.4 SOUND JUMPS [CD PLAYER/CHANGER]	B1188:64	10:Er07, 22:Er07
5		NO.5 CD PLAYER/CHANGER SCRATCHES ON THE CD [CD PLAYER/CHANGER]	B1188:64	10:Er07, 22:Er07
6	CD changer	NO.6 DISC CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1188:64	22:Er07
7	CD player/changer (MP3/WMA formatted file payback function)	NO.7 CD PLAYER DOES NOT PLAY THE MP3/WMA-FORMATTED FILE [CD PLAYER/CHANGER]	B1188:64	10:Er07, 22:Er07
8		NO.8 MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK SEARCH IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	10:Er02, 22:Er02
9		NO.9 CD PLAYER DOES NOT INDICATE THE MP3/WMA TITLE TEXT [CD PLAYER/CHANGER]	B1D19:71, B1188:64	10:Er02, 10:Er07, 22:Er02, 22:Er07
10		NO.10 CD PLAYER DOES NOT PLAY THE AUDIO DATA (CDDA) [CD PLAYER/CHANGER]	B1D19:71, B1188:64	10:Er02, 10:Er07, 22:Er02, 22:Er07
11	CD player/changer	NO.11 TRACK CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	10:Er02, 22:Er02

am3zzw00011114
