BONNET DISASSEMBLY/ASSEMBLY
id091000899800

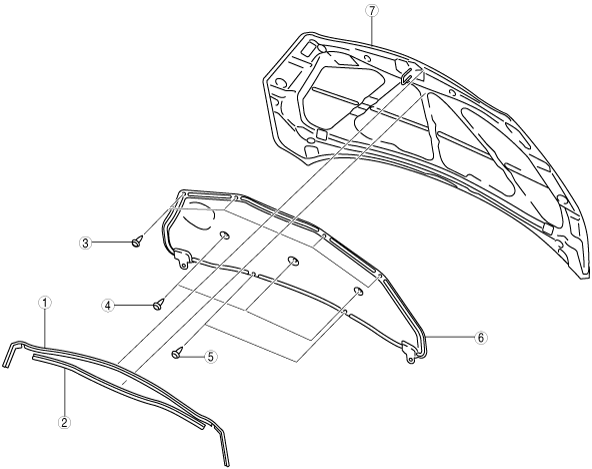

Except MPS
1. Disassemble in the order indicated in the table.
am3zzw00008211
|
|
1
|
Weather strip parting seal
|
|
2
|
Weather strip shroud seal
|
|
3
|
Fasteners A
|
|
4
|
Fasteners B
|
|
5
|
Fasteners C
|
|
6
|
Bonnet insulator
|
|
7
|
Bonnet component
|
2. Assemble in the reverse order of disassembly.
MPS
1. Disassemble in the order indicated in the table.
am3uuw00005967
|
|
1
|
Weather strip parting seal
|
|
2
|
Weather strip shroud seal
|
|
3
|
Nut A
|
|
4
|
Fasteners B
|
|
5
|
Charge air cooler duct
|
|
6
|
Fasteners C
|
|
7
|
Bonnet insulator
|
|
8
|
Nut D
|
|
9
|
Charge air cooler duct cover
|
|
10
|
Grommet
|
|
11
|
Bonnet component
|
2. Assemble in the reverse order of disassembly.
