LIFTGATE ADJUSTMENT

id091100521400

1.  Measure the gap and height difference between the liftgate and the body.

2.  Loosen the liftgate hinge installation bolts and adjust the gap by moving the liftgate.

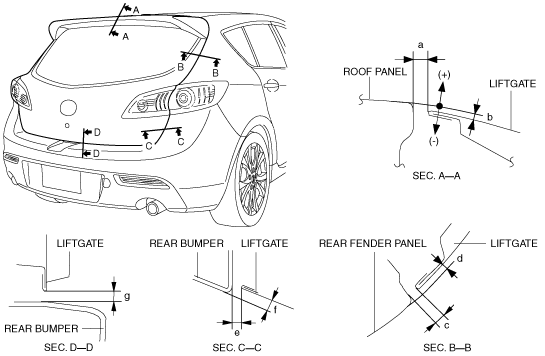

am3uuw00007974

Standard clearance
a: 5.0―7.0 mm {0.20―0.27 in}
b: -2.0―0 mm {-0.078―0 in}
c: 3.0―6.0 mm {0.12―0.23 in}
d: -1.4―1.6 mm {-0.055―0.062 in}
e: 2.5―6.5 mm {0.10―0.25 in}
f: -0.9―3.0 mm {-0.03―0.11 in}
g: 4.0―8.0 mm {0.16―0.31 in}

3.  Tighten the bolts.
