REAR SEAT CUSHION REMOVAL/INSTALLATION

id091300912600

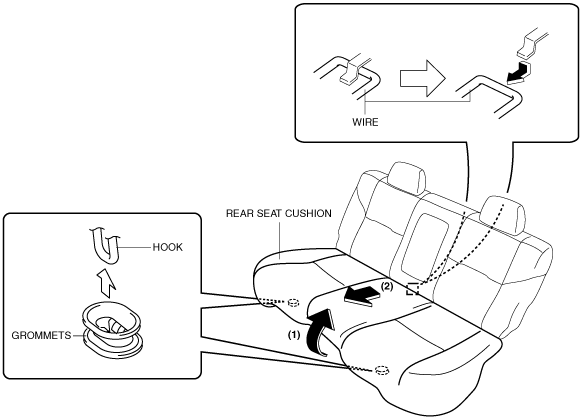

1.  Detach the hooks from the grommets by pulling the rear seat cushion in the order of (1), (2) in the direction of the arrow shown in the figure.

am3zzw00006545

2.  Install in the reverse order of removal.
