TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION


id091400513700

1.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

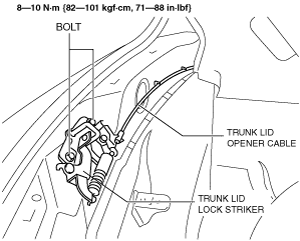

2.  Disconnect the trunk lid lock striker from the trunk lid opener cable.

am3zzw00011866

3.  Remove the bolts, then remove the trunk lid lock striker.

4.  Install in the reverse order of removal.

5.  Adjust the trunk lid lock striker. (See TRUNK LID ADJUSTMENT.)
