GLASS PANEL REMOVAL/INSTALLATION

id091500800500

1.  Fully close the glass panel.

2.  Fully open the sunshade.

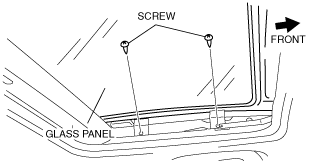

3.  Remove the screws, and then remove the glass panel.

am3uuw00007765

4.  Peel the weatherstrip off the glass panel.

acxuuw00001167

5.  Install in the reverse order of removal.

6.  Adjust the glass panel. (See GLASS PANEL ADJUSTMENT.)
