COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Remove the fastener A.

3.  Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tab B and tab C.

am3uuw00003924

4.  Disconnect the windshield washer hose from the joint pipe A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

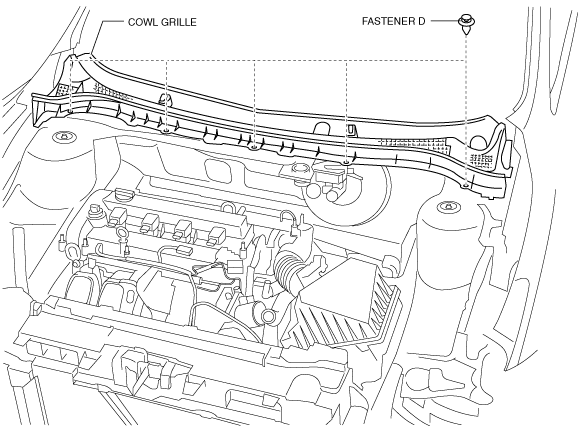

5.  Remove the fasteners D.

am3uuw00003925

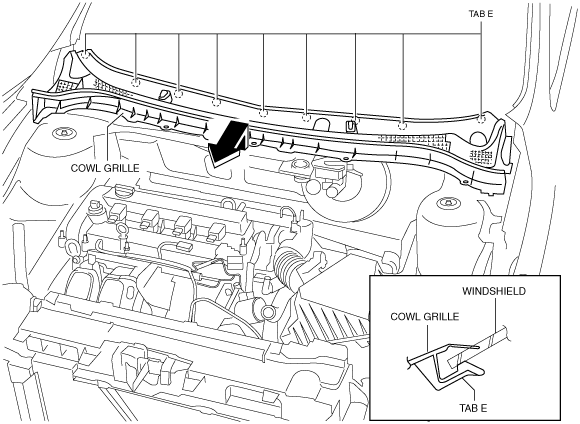

6.  Pull the cowl grille in the direction of arrow, then remove the tabs E from the windshield.

am3uuw00003926

7.  Remove the cowl grille.

8.  Install in the reverse order of removal.
