SPLASH SHIELD REMOVAL/INSTALLATION

id091600808400

Front Splash Shield

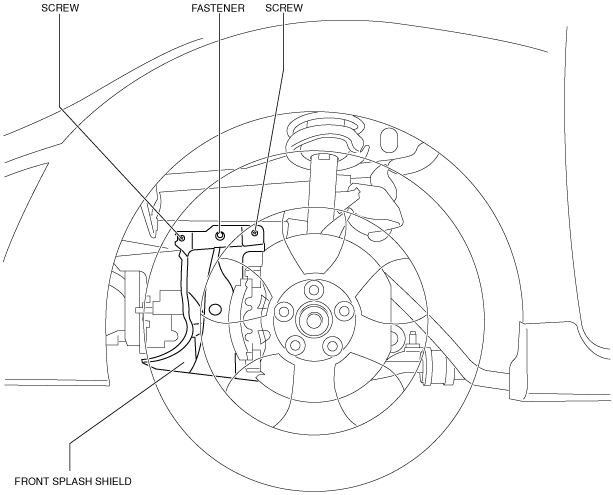

1.  Remove the screws and fastener then remove the front splash shield.

am3uuw00004125

2.  Install in the reverse order of removal.

Rear Splash Shield

1.  Remove the fastener, screws and capnut .

am3zzw00006107

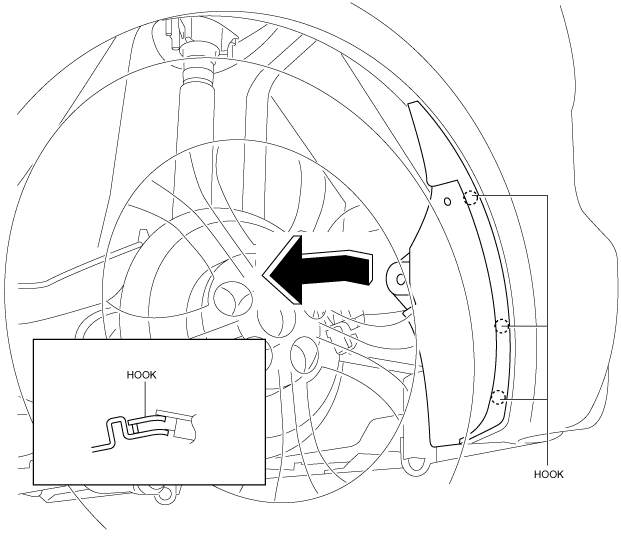

2.  Pull the rear splash shield in the direction of the arrow shown in the figure, then remove the hooks.

am3uuw00004127

3.  Install in the reverse order of removal.
