FRONT MUDGUARD REMOVAL/INSTALLATION

id091600812300

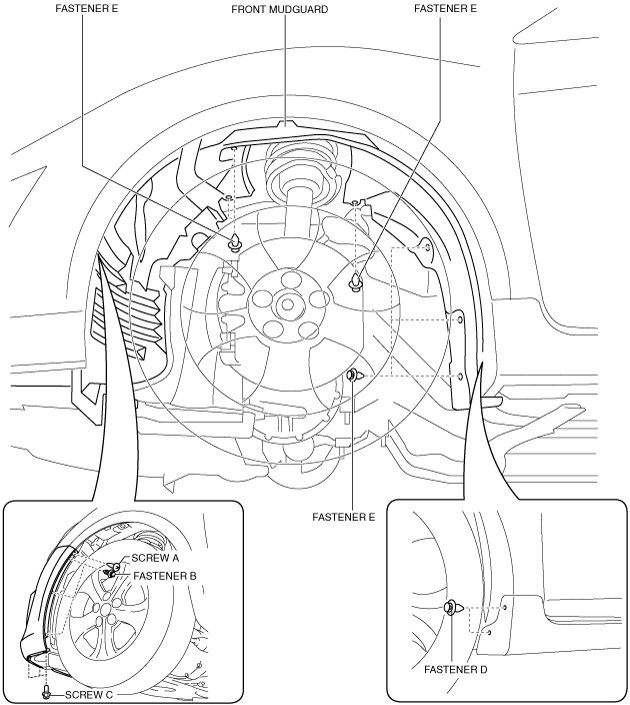

1.  Remove screw A, fasteners B, screws C, fasteners D, and E.

am3uuw00003937

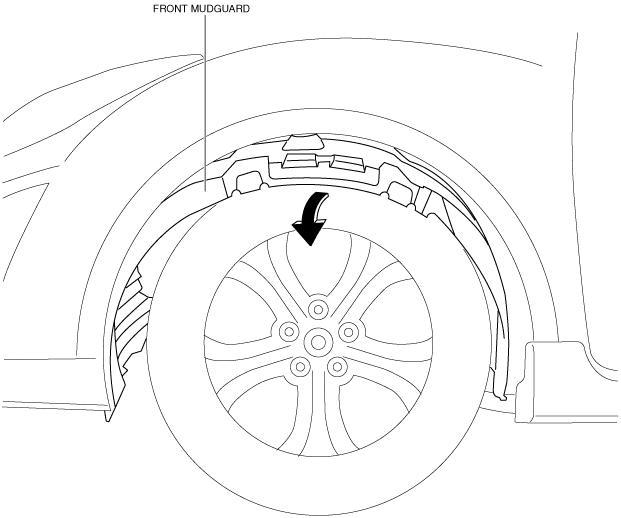

2.  Remove the front mudguard in the direction of the arrow shown in the figure.

am3uuw00003938

3.  Install in the reverse order of removal.
