DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1.  Remove the ventilator grilles. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

2.  Remove the Passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Disassemble in the order indicated in the table.

4.  Assemble in the reverse order of disassembly.

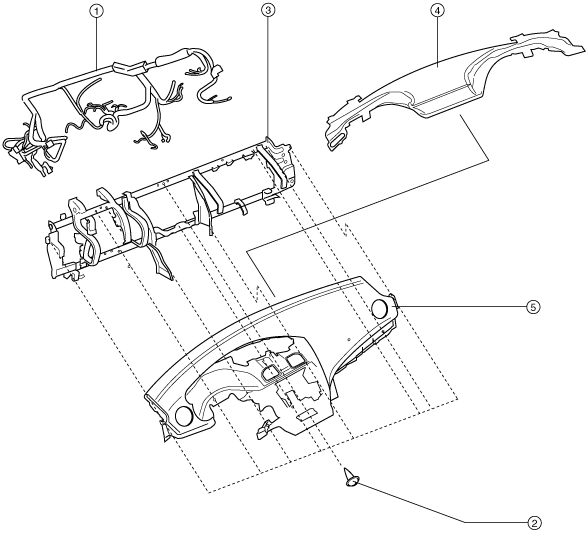

am6xuw00001623

1	Wiring harness
2	Screw
3	Dashboard frame
4	Center duct
5	Dashboard
