COLUMN COVER REMOVAL/INSTALLATION

id091700800800

L.H.D.

1.  Pull down the steering wheel.

2.  Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the hooks and pins.

am3uuw00004683

3.  Pull up the steering wheel.

4.  Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION REMOVAL/INSTALLATION.)

5.  Remove the screws.

6.  Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

am3uuw00004684

7.  Install in the reverse order of removal.

R.H.D.

1.  Pull down the steering wheel.

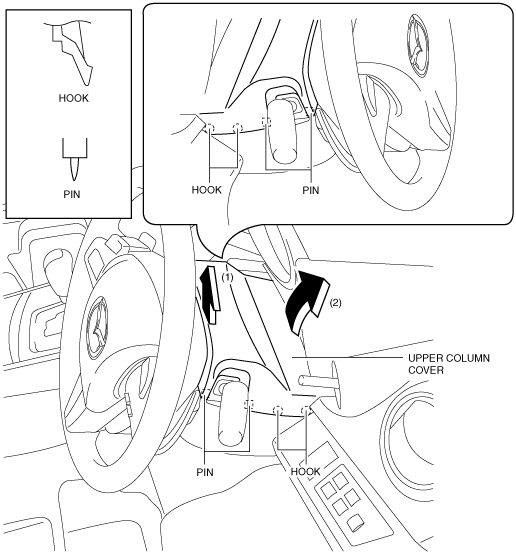

2.  Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the hooks and pins.

am3zzw00005845

3.  Pull up the steering wheel.

4.  Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION REMOVAL/INSTALLATION.)

5.  Remove the screws.

6.  Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

am3zzw00005846

7.  Install in the reverse order of removal.
