REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

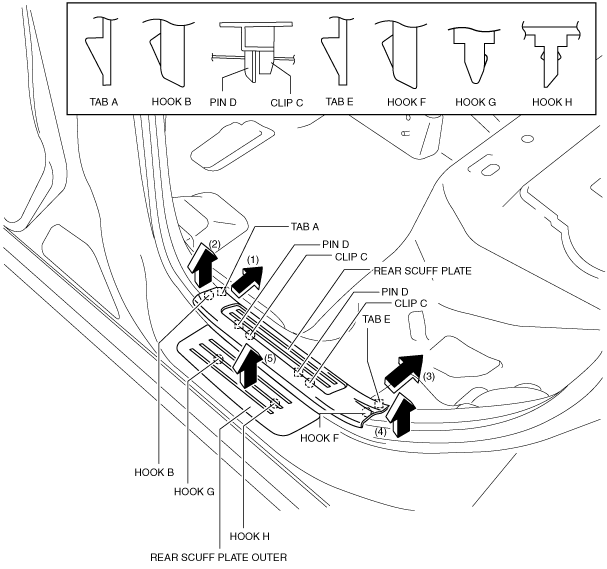

1.  Detach tab A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach hook B, clips C, pins D while pulling in the direction of the arrow (2).

2.  Detach tab E while pulling the rear scuff plate in the direction of the arrow (3) shown in the figure, pull the rear scuff plate in the direction of the arrow (4), and remove it while detaching hook F.

3.  Detach hook G and hook H, then pull the rear scuff plate outer in the direction of the arrow (5) shown in the figure.

am3zzw00005852

4.  Install in the reverse order of removal.
