A-PILLAR TRIM REMOVAL/INSTALLATION

id091700801900

1.  Partially peel back the seaming welt.

2.  Pull the upper end of the A-pillar trim in the direction of the arrow shown in the figure and remove clip A and B.

am3uuw00004769

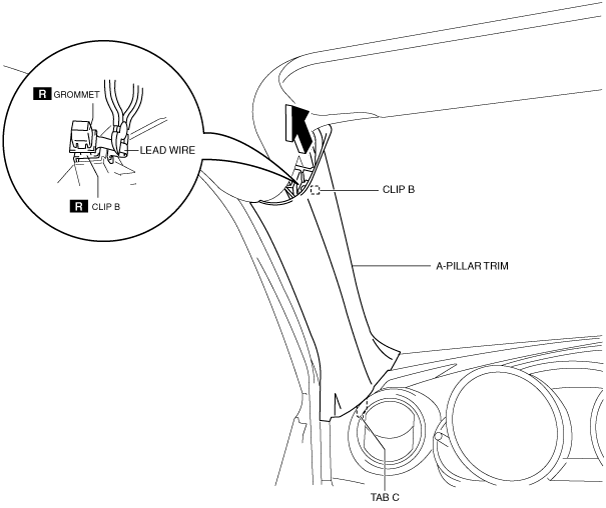

3.  Cut the lead wire connecting clip B and grommet using a nipper and pull out the A-pillar trim in the direction of the arrow shown in the figure.

am3uuw00004770

Caution

•  When pulling out the A-pillar trim, be careful not to damage the tab C.

4.  Move the hook in the direction of arrows (1) and (2) shown in the figure using a flathead screwdriver and detach it from the A-pillar inner panel.

am6zzw00001668

5.  Remove the grommet in the direction of the arrow (3) shown in the figure.

6.  When installing the A-pillar, install the new clip B and grommet to the A-pillar trim in advance.

7.  Install in the reverse order of removal.
