FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700804200
Driver-side
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
am3zzw00006576
|
|
1
|
Screw A
|
|
2
|
Assist handle
|
|
3
|
Switch panel cover
|
|
4
|
Screw B
|
|
5
|
Power window main switch
|
|
6
|
Front door trim
|

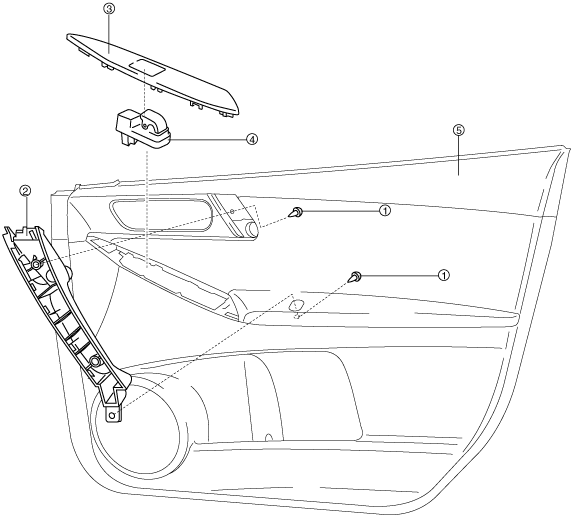

Passenger-side
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
am3zzw00006577
|
|
1
|
Screw
|
|
2
|
Assist handle
|
|
3
|
Switch panel cover
|
|
4
|
Power window subswitch
|
|
5
|
Front door trim
|
