REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

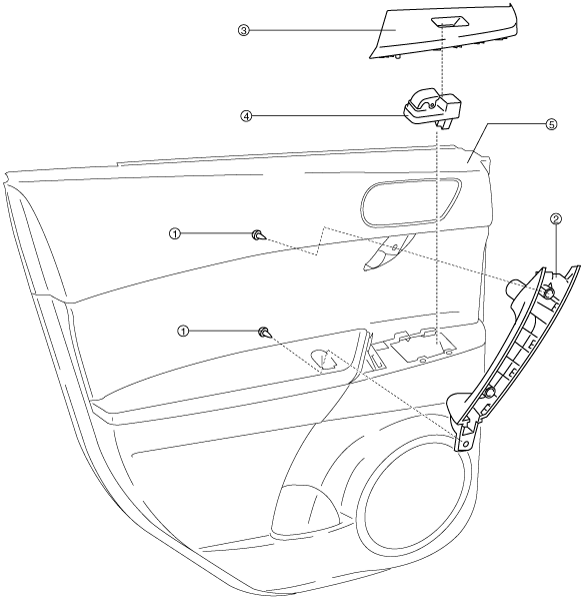

1.  Disassemble in the order shown in the figure.

2.  Assemble in the reverse order of disassembly.

am3uuw00005129

1	Screw
2	Assist handle
3	Switch panel cover
4	Power window subswitch
5	Rear door trim
