SIDE WALL REMOVAL/INSTALLATION

id091700805400

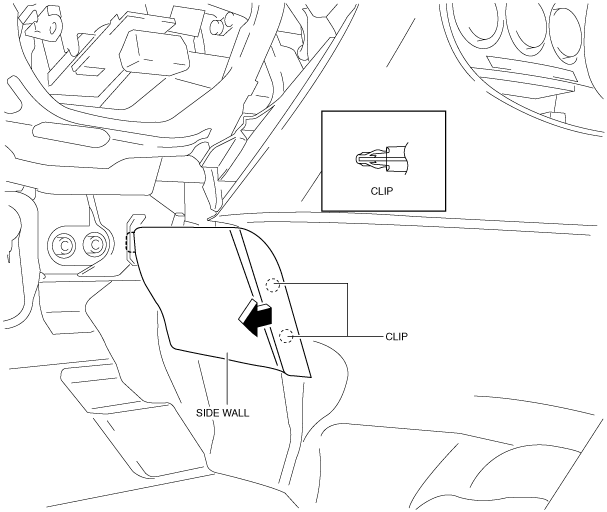

1.  Pull out the side wall in the direction shown in the direction of the arrow shown in the figure, then remove the clips.

am3zzw00006581

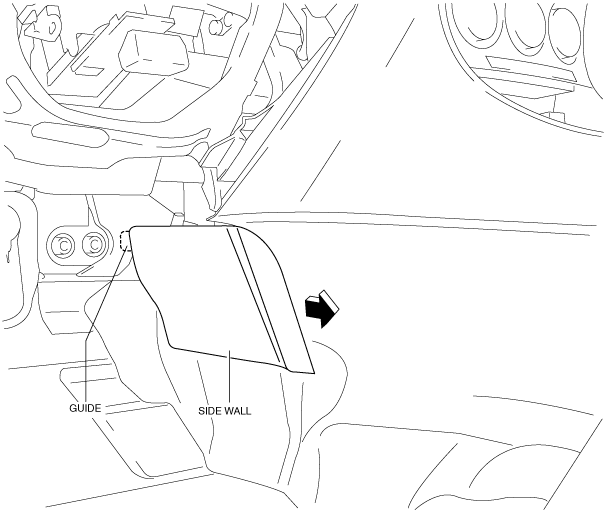

2.  Remove the side wall in the direction of the arrow shown in the figure.

am3uuw00001229

Caution

•  When remove the side wall, be careful not to damage the guide.

3.  Install in the reverse order of removal.
