DASHBOARD UNDER COVER REMOVAL/INSTALLATION


id091700807200

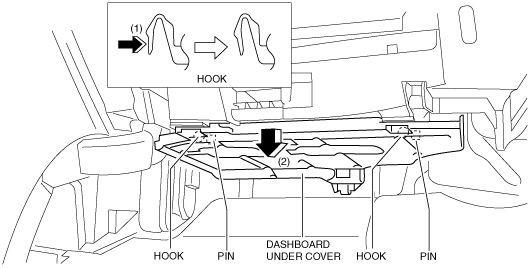

1.  Detach the hooks in the direction of arrow (1) shown in the figure.

2.  Pull the dashboard under cover in the direction of arrow (2).

am3uuw00004730

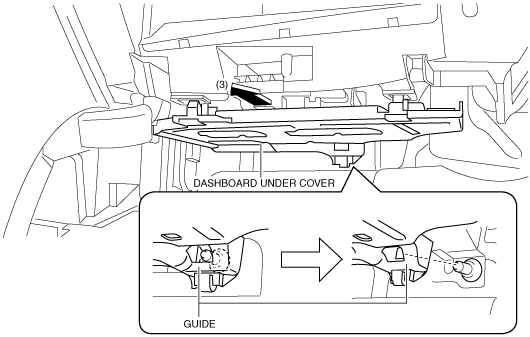

3.  Remove the dashboard under cover, then remove the guide.

am3zzw00006584

4.  Install in the reverse order of removal.
