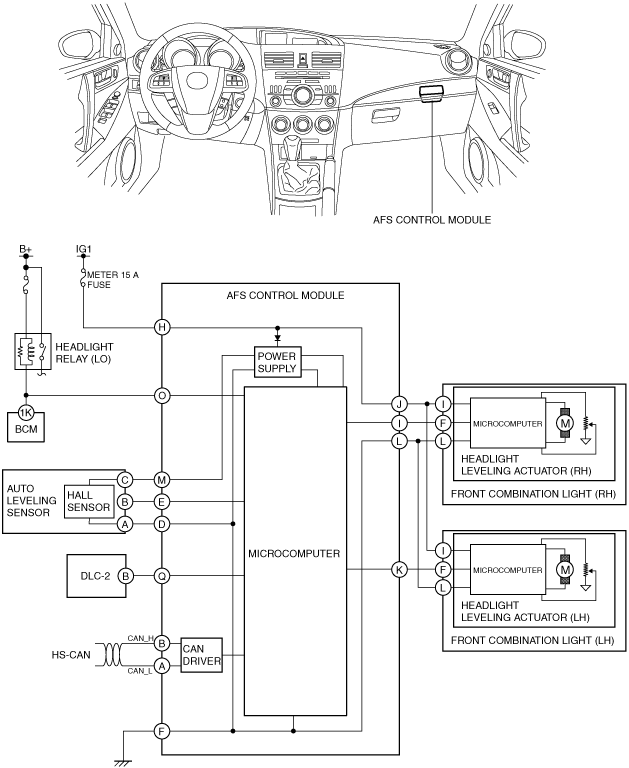

AFS (ADAPTIVE FRONT LIGHTING SYSTEM) CONTROL MODULE

• Calculates the target optical axis based on the vehicle height signal and outputs the target optical axis signal to the headlight leveling actuator.

• The AFS control module controls the headlight auto leveling system based on the vehicle height signal, vehicle speed signal, and the headlight on signal.

• Furthermore, a self-diagnostic function is equipped which indicates a malfunctioning area of the headlight auto leveling system by the output pattern using the AFS OFF indicator light. Also, if a malfunction occurs in the headlight auto leveling system, a fail-safe function is equipped which stops control of the optical axes of the discharge headlights and illuminates or flashes the AFS OFF indicator light.

• Assembled to the dashboard member.

• Consists of a microcomputer which calculates the target optical axis from the input signal, and a power driver which supplies stable power to the auto leveling sensor and microcomputer.

am3zzn00003258

1. The AFS control module calculates the amount of vehicle inclination based on the vehicle height signal from the auto leveling sensor when the ignition is switched ON. It also calculates the vehicle speed based on the vehicle speed signal from the instrument cluster to determine whether the vehicle is stopped or being driven.

2. The AFS control module calculates the average value of the vehicle inclination amount and the target optical axis after the ignition is switched ON and a headlight on signal is received.

3. The AFS control module outputs the target optical axis signal to the headlight leveling actuator.

• If the following malfunctions are detected, the fail-safe function operates.

Detection item	Detection condition	Fail-safe	AFS OFF indicator light	Recovery condition
Headlight auto leveling sensor power supply voltage error signal detected	18.1 V or more or 9 V or less detected for 10 s or more	Stopped at current control position	Not flash	17.5 V at continuous 5 s, or 9.3 V or more detected
Headlight auto leveling sensor error signal detected	4.75 V or more or 25 V or less detected for 10 s or more	Stopped at current control position	Flash^*1	Normal value detected for continuos 5 s
CAN transmission error detected	CAN transmission error detected	Stopped at current control position	Flash^*1	CAN transmission restored to normal
Vehicle speed signal error detected	Error signal received for continuos 5 s, or transmission interruption detected	Stopped at current control position	Flash^*1	Normal value detected for continuous 2 s
AFS control module error detected	Micro computer malfunction detected	Stopped at current control position	Flash^*1	Micro computer reset canceled
	Configuration data error detected	Stopped at current control position	Flash^*2	Reading of normal configuration data initiated
	AFS control module read, write error detected	Stopped at current control position	Flash^*1	Ignition is switched off and then back on
