FRONT COMBINATION LIGHT BRACKET REPLACEMENT

id091800800800

Note

•  Verify that the front combination light is not damaged before using the repair bracket for installation when the original brackets are damaged. If the front combination light component is damaged, replace the light as a single unit.

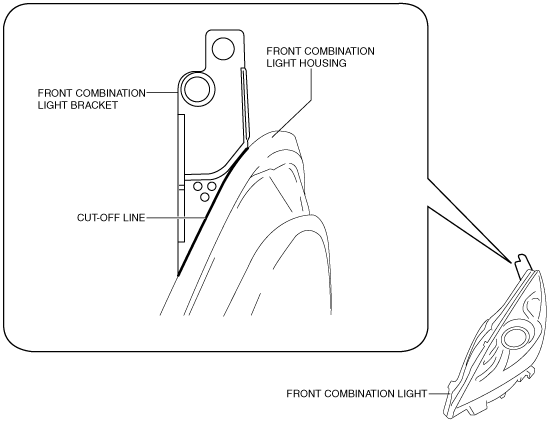

1.  Cut off the front combination light bracket at the locations shown in the figure.

am3zzw00011638

2.  Smoothen the cut surfaces using sandpaper so that the repair bracket can be properly installed.

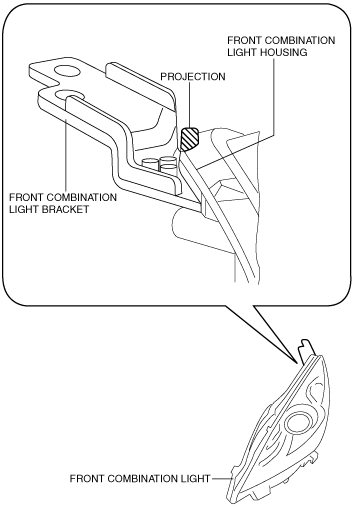

3.  Cut the projection at the position shown in the figure.

am3uuw00007843

4.  After disconnecting the projection, verify that the projection is less than 1 mm {0.04 in} from the front combination light housing.

5.  Securely attach the repair bracket to the front combination light using the screws.

am3uuw00007844
