AUDIO SYSTEM
id092000010100
-
Note
-
• “iPod” is a registered trademark of Apple Inc. in the United States and other countries.
Outline
• An Auxiliary jack/USB port unit has been adopted which can connect to commercially-available portable audio/USB devices/iPod, and output sound from the speakers via the audio unit.
• A USB adaptor has been adopted for transmission of information between a USB device connected to an exterior input unit and the audio unit.

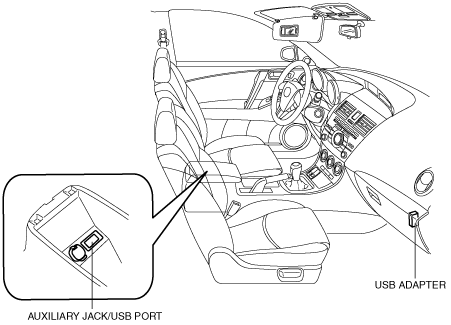

Structural view

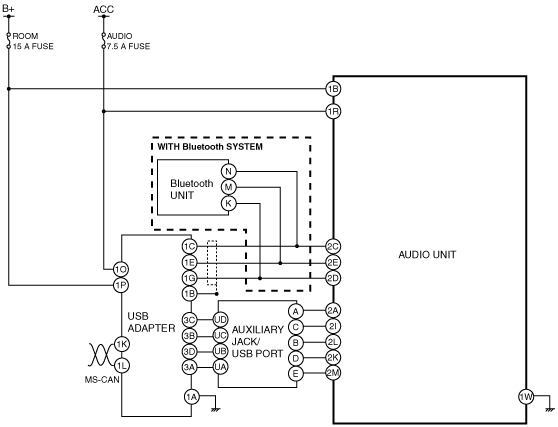

Block diagram
Except SKYACTIV-G 2.0
SKYACTIV-G 2.0
