AUDIO AMPLIFIER
id092000011200
Purpose
Function

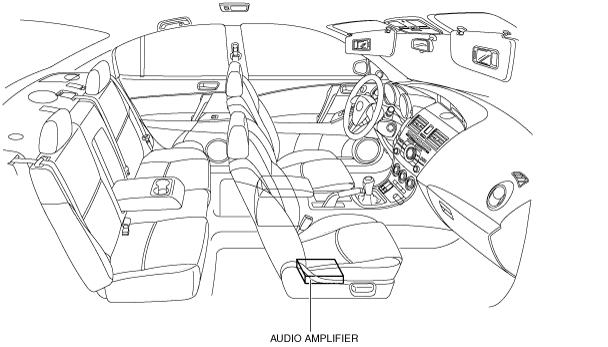

Construction
am3zzn00003226
|
Terminal Layout and Signal
L.H.D.
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
AMP control (SW B+)
|
|
1B
|
Vehicle speed signal
|
|
|
1C
|
Front door speaker input LH (-)
|
|
|
1D
|
Front door speaker input LH (+)
|
|
|
1E
|
Front door speaker input RH (-)
|
|
|
1F
|
Front door speaker input RH (+)
|
|
|
1G
|
Rear door speaker input LH (-)
|
|
|
1H
|
Rear door speaker input LH (+)
|
|
|
1I
|
Rear door speaker input RH (-)
|
|
|
1J
|
Rear door speaker input RH (+)
|
|
|
1K
|
—
|
|
|
1L
|
—
|
|
|
1M
|
—
|
|
|
1N
|
i-stop control
|
|
|
1O
|
AudioPilot® 2 microphone (+)
|
|
|
1P
|
AudioPilot® 2 microphone (-)
|
|
 |
2A
|
—
|
|
2B
|
Rear door speaker output LH (-)
|
|
|
2C
|
—
|
|
|
2D
|
Rear door speaker output LH (+)
|
|
|
2E
|
Rear speaker output (+)
|
|
|
2F
|
—
|
|
|
2G
|
Rear speaker output (-)
|
|
|
2H
|
—
|
|
|
2I
|
Front center speaker output (+)
|
|
|
2J
|
Power ground (5HB)
|
|
|
2K
|
Front center speaker output (-)
|
|
|
2L
|
—
|
|
|
2M
|
Rear door speaker output RH (+)
|
|
|
2N
|
—
|
|
|
2O
|
Rear door speaker output RH (-)
|
|
|
2P
|
—
|
|
 |
3A
|
B+
|
|
3B
|
Power ground
|
|
|
3C
|
Front door speaker LH and tweeter LH output (-)
|
|
|
3D
|
Front door speaker LH and tweeter LH output (+)
|
|
|
3E
|
Front door speaker RH and tweeter RH output (-)
|
|
|
3F
|
Front door speaker RH and tweeter RH output (+)
|
|
|
3G
|
Rear center speaker (4SD)/bass-box (5HB) output (-)
|
|
|
3H
|
Rear center speaker (4SD)/bass-box (5HB) output (+)
|
|
R.H.D.
|
Terminal |
Signal |
|
|---|---|---|
|
1A
|
AMP control (SW B+)
|
|
1B
|
Vehicle speed signal
|
|
|
1C
|
Front door speaker input RH (-)
|
|
|
1D
|
Front door speaker input RH (+)
|
|
|
1E
|
Front door speaker input LH (-)
|
|
|
1F
|
Front door speaker input LH (+)
|
|
|
1G
|
Rear door speaker input RH (-)
|
|
|
1H
|
Rear door speaker input RH (+)
|
|
|
1I
|
Rear door speaker input LH (-)
|
|
|
1J
|
Rear door speaker input LH (+)
|
|
|
1K
|
—
|
|
|
1L
|
AudioPilot®2
|
|
|
1M
|
—
|
|
|
1N
|
i-stop control
|
|
|
1O
|
AudioPilot® 2 microphone (+)
|
|
|
1P
|
AudioPilot® 2 microphone (-)
|
|
|
2A
|
—
|
|
2B
|
Rear door speaker output RH (-)
|
|
|
2C
|
—
|
|
|
2D
|
Rear door speaker output RH (+)
|
|
|
2E
|
Rear speaker output (+)
|
|
|
2F
|
—
|
|
|
2G
|
Rear speaker output (-)
|
|
|
2H
|
—
|
|
|
2I
|
Front center speaker output (+)
|
|
|
2J
|
Power ground (5HB)
|
|
|
2K
|
Front center speaker output (-)
|
|
|
2L
|
—
|
|
|
2M
|
Rear door speaker output LH (+)
|
|
|
2N
|
—
|
|
|
2O
|
Rear door speaker output LH (-)
|
|
|
2P
|
—
|
|
|
3A
|
B+
|
|
3B
|
Power ground
|
|
|
3C
|
Front door speaker RH and tweeter RH output (-)
|
|
|
3D
|
Front door speaker RH and tweeter RH output (+)
|
|
|
3E
|
Front door speaker LH and tweeter LH output (-)
|
|
|
3F
|
Front door speaker LH and tweeter LH output (+)
|
|
|
3G
|
Rear center speaker (4SD)/bass-box (5HB) output (-)
|
|
|
3H
|
Rear center speaker (4SD)/bass-box (5HB) output (+)
|
|
Operation
1. The PCM sends a boost request signal to the DC-DC converter and audio amplifier when the engine is restarted by the i-stop control.
2. When the audio amplifier receives a boost request signal, output current to the speaker is controlled to 10A or less.
am3zzn00003227
|
Fail-safe
