AUXILIARY JACK/USB PORT

id092000012600

Note

• “iPod” is a registered trademark of Apple Inc. in the United States and other countries.

Purpose, Function

• The Auxiliary jack/USB port outputs the audio signals of commercially-available portable audio, a USB device, or an iPod connected to the Auxiliary jack/USB port to the audio unit.

Construction

• Auxiliary jack/USB port is installed inside the rear console.

am3zzn00003488

• An auxiliary jack and USB port are equipped.

Operation

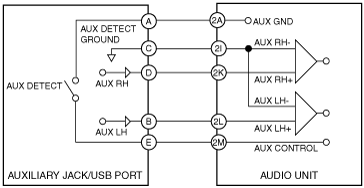

Auxiliary jack

1. When the plug of a portable audio unit is connected to the Auxiliary jack/USB port, the Auxiliary jack/USB port sends the audio signal from the portable audio device to the audio unit.

am3zzn00003489

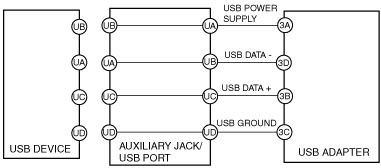

USB port

1. When the USB device/iPod is connected to the USB port for the auxiliary jack/USB port, the auxiliary jack/USB port sends the audio signal of the USB device/iPod to the audio unit.

am3zzn00003490

Fail-safe

• Function not equipped.
