RELAY LOCATION
id092100800600
MZR 2.0 DISI i-stop
am3zzw00012290
|
|
1
|
Front fog light relay
|
|
2
|
Fuel injector relay
|
|
3
|
Headlight relay (LO)
|
|
4
|
Heated windshield relay No.2
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
TNS relay
|
|
10
|
Horn relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Headlight cleaner relay
|
|
15
|
Rear fog light relay
|
|
16
|
Heated windshield relay No.1
|
|
17
|
Starter relay
|
|
18
|
Charge relay
|
|
19
|
Power drive relay
|
|
20
|
Power relay
|
MZ-CD 1.6, MZR-CD 2.2
am3zzw00012291
|
|
1
|
Front fog light relay
|
|
2
|
Heated windshield relay No.1
|
|
3
|
Headlight relay (LO)
|
|
4
|
Fuel warmer relay (MZ-CD 1.6 (Y6))
|
|
5
|
Headlight relay (HI)
|
|
6
|
Heated windshield relay No.2
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
TNS relay
|
|
10
|
Horn relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Glow plug relay
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|

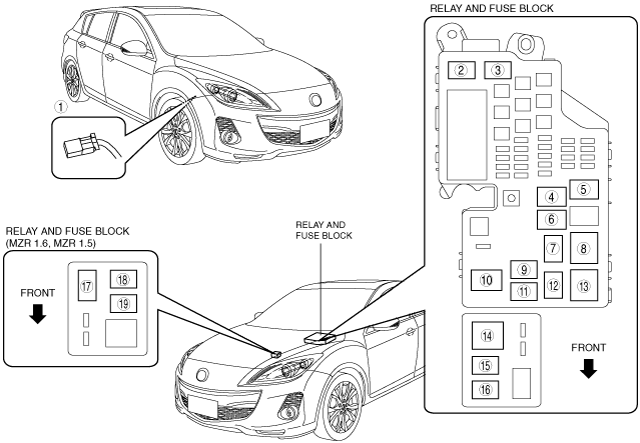

MZR 1.6, MZR 1.5, MZR 2.0, MZR 2.5
am3zzw00012558
|
|
1
|
Front fog light relay
|
|
2
|
Heated windshield relay No.1
|
|
3
|
Headlight relay (LO)
|
|
4
|
AT main relay
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
Horn relay
|
|
10
|
TNS relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Heated windshield relay No.2
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|
|
17
|
Cooling fan relay No.1
|
|
18
|
Cooling fan relay No.3
|
|
19
|
Cooling fan relay No.2
|
MZR 2.3 DISI Turbo
am3zzw00012292
|
|
1
|
Front fog light relay
|
|
2
|
Fuel injector relay
|
|
3
|
Headlight relay (LO)
|
|
4
|
Fuel pump speed control relay
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
Horn relay
|
|
10
|
TNS relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Heated windshield relay No.2
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|
|
17
|
Heated windshield relay No.1
|

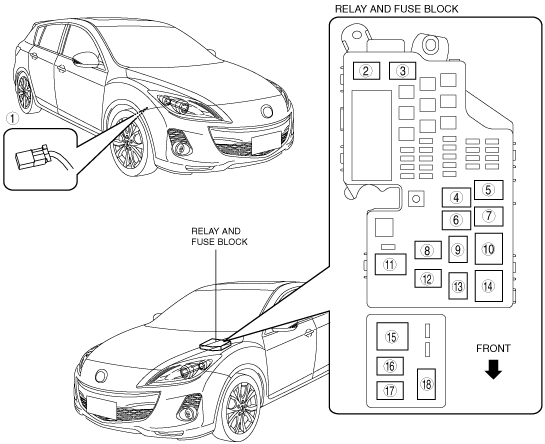

SKYACTIV-G 2.0
am3zzw00012304
|
|
1
|
Front fog light relay
|
|
2
|
Fuel injector relay
|
|
3
|
Headlight relay (LO)
|
|
4
|
Main relay
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Headlight cleaner relay
|
|
8
|
Horn relay
|
|
9
|
Starter relay
|
|
10
|
Blower relay
|
|
11
|
TNS relay
|
|
12
|
Rear window defroster relay
|
|
13
|
A/C relay
|
|
14
|
Electric variable valve timing relay
|
|
15
|
Electric AT oil pump relay
|
|
16
|
Ignition relay (IG1 STAB)
|
|
17
|
Ignition relay (IG1 ACC STAB)
|
|
18
|
Back-up light relay
|
