INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE

id092200015800


Instrument Cluster

1.  Connect the M-MDS (IDS) to the DLC-2.

am3uuw00003598

2.  After the vehicle is identified, select the following items from the initialization screen of the IDS.

1.  Select the “Module Programming”.

3.  Then, select items from the screen menu in the following order.

1.  Select “Programmable Parameters”.
2.  Select “Warning Lamps / Chimes”.

4.  Select an item name, and then select option.

M-MDS display

Function

Initial setting

Setting content

Control unit
Advanced key buzzer volume
The advanced keyless entry and push button start system warning alarm can be adjusted.
Loud
Loud / Low
Instrument cluster
Average fuel consumption resetting method
The average fuel economy display and the trip A display in the instrument cluster can be reset simultaneously, or only the average fuel economy display can be selected for resetting.
On MID only
When refueling and on MID / On MID only / When resetting tripmeter A and on MID
Instrument cluster
Decoration illumination
The decoration illumination can be set to operable or inoperable.
Enabled
Disabled / Enabled
Instrument cluster
Driver Beltminder Status
The driver seat belt minder can be set to operable or inoperable.
Enabled
Enabled / Disabled
Instrument cluster
Fuel logic
The fuel gauge needle operation speed correction can be set to operable or inoperable.
Enabled
Disabled / Enabled
Note
•  Enabled: The fuel gauge adjusts the fuel gauge needle operation speed based on the fuel consumption amount signal input from the PCM via the CAN lines, and the fuel consumption amount sent from the fuel gauge sender unit.
•  Disabled: The fuel gauge adjusts the fuel gauge needle operation speed based on the fuel consumption amount input from the fuel gauge sender unit.
Instrument cluster
Key reminder buzzer volume
The key reminder warning alarm can be adjusted.
Loud
Low / Loud
Instrument cluster
Passenger seatbelt buzzer
The passenger seat belt warning alarm can be set to operable or inoperable.
Enabled
Enabled / Disabled
Instrument cluster
RVM/BSM buzzer volume
The rear vehicle monitoring system warning alarm can be adjusted.
Loud
Not equipped / No alarm / Low / Loud
Instrument cluster
Light reminder buzzer volume
The headlights-on reminder warning alarm can be adjusted.
Loud
Not equipped / No alarm / Low / Loud
Instrument cluster
Trip meter indication unit
Display unit can be selected. (Trip B only)
0.1
0.1 / 1
Instrument cluster
Turn signal buzzer volume
The turn indicator alarm sound volume can be adjusted.
Loud
Loud / Not equipped / Low
Instrument cluster
Welcome Mode
The welcome mode can be operable set to or inoperable.
Enabled
Enabled / Disabled
Instrument cluster


Rear Vehicle Monitoring System

1.  Connect the M-MDS (IDS) to the DLC-2.

am3uuw00003598

2.  After the vehicle is identified, select the following items from the initialization screen of the IDS.

1.  Select the “Module Programming”.

3.  Then, select items from the screen menu in the following order.

1.  Select “Programmable Parameters”.
2.  Select “Personality”.

4.  Select an item name, and then select option.

M-MDS display

Function

Initial setting

Setting content

Control unit
RVM buzzer
The rear vehicle monitoring warning alarm can be set to operable or inoperable.
Enabled
Enabled/Disabled
Instrument cluster


Multi Information Display

1.  Press the INFO switch until the SETTINGS screen is displayed.

2.  Select PREFERENCES by pressing the Enter (up/down) switch up or down, and then press the Enter (up/down) switch.

3.  Select the setting item you want to change by pressing the Enter (up/down) switch up or down, and then press the Enter (up/down) switch.

4.  Select the desired setting by pressing the Enter (up/down) switch up or down, and then press the Enter (up/down) switch.

Multi information display

Function

Initial setting

Setting content

Control unit
Distance unit
Display unit can be selected.
km
km/mile
Multi information display
Temperature unit
Display unit can be selected.
°C
°C/°F
Multi information display
Display language
Display language can be selected.
English
English/French/German/Italian/Spanish
Multi information display


Intelligent Drive Master (i-DM) (vehicles with i-DM)

•  The setting for the following functions can be changed.
―  Intelligent Drive Master gauge (i-DM) ON/OFF setting
―  Intelligent Drive Master (i-DM) stage change
am3zzw00012555

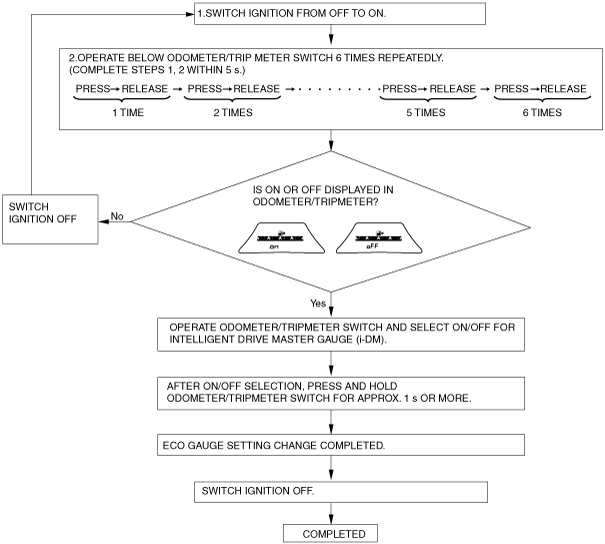

ECO gauge (vehicles with ECO gauge)

•  The setting for the following functions can be changed.
―  ECO gauge ON/OFF setting
am3zzw00012556
