INTELLIGENT DRIVE MASTER (i-DM)

id092200028000

Purpose

Structural View

am3zzn00003337

System wiring diagram

am3zzn00003338

Function

Driving status

•  The i-DM control status signal indicates the driver's driving status which is determined by applying the estimated movement of the passenger, which is calculated by the PCM based on the vehicle speed signal from the DSC HU/CM and the steering angle signal from the EHPAS control module, to the driving determination map.

•  Based on the i-DM control status signal, the instrument cluster displays the driver's driving status as follows:

Intelligent drive master gauge (i-DM gauge)	Driving status determination	Driving status display
Green lamp	Gentle driving which does not make passenger uncomfortable
Blue lamp *1	Smooth driving in which driver and passenger feel comfortable.
White gauge (Steering operation)	Steering operation which gives passenger uncomfortable feel, and driving which sways passenger's body is determined in three levels.
White gauge (Pedal operation)	Accelerator/brake pedal operation which gives passenger uncomfortable feel, and driving which sways passenger's body is determined in three levels.

•  The following driving determination maps are recorded in the PCM.

Driving determination map	Determination target	Vehicle driving status
Driving determination map for longitudinal acceleration	Longitudinal direction	Start, acceleration start, acceleration end, deceleration start, deceleration end
Driving determination map for lateral acceleration	Lateral direction	Entering and exiting a corner
Driving determination map for maintained acceleration	Longitudinal direction	During acceleration and deceleration
	Lateral direction	During cornering

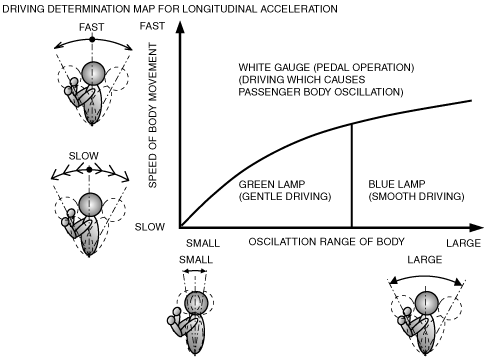

Determination for driving status when there is change in longitudinal acceleration/deceleration

•  The PCM determines the driving status by applying the oscillation range and the speed of movement of the passenger's body in the longitudinal direction, which is estimated according to the vehicle's longitudinal acceleration/deceleration (start, acceleration start, acceleration end, deceleration start, deceleration end), to the driving determination map for longitudinal acceleration.

•  The instrument cluster displays the determined driving status using the green and blue lamps and the white gauge (pedal operation).

am3zzn00003324

Determination for driving status when there is change in lateral acceleration/deceleration

•  The PCM determines the driving status by applying the oscillation range and the speed of movement of the passenger's body in the lateral direction, which is estimated according to the vehicle's lateral acceleration/deceleration (entering and exiting a corner), to the driving determination map for lateral acceleration.

•  The instrument cluster displays the determined driving status using the green and blue lamps and the white gauge (steering operation).

am3zzn00003325

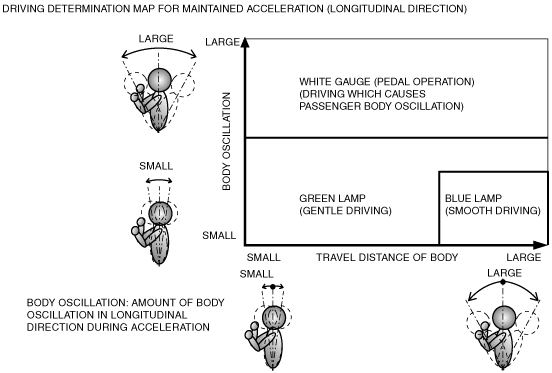

Determination for driving status when longitudinal acceleration/deceleration is maintained

•  The PCM determines the driving status by applying the oscillation and travel distance of the passenger's body in the longitudinal direction, which is estimated during the acceleration/deceleration, to the driving determination map for maintained acceleration (longitudinal direction).

•  The instrument cluster displays the determined driving status using the green and blue lamps and the white gauge (pedal operation).

am3zzn00003326

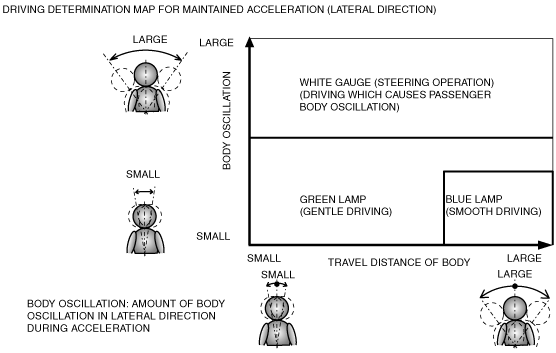

Determination for driving status when lateral acceleration/deceleration is maintained

•  The PCM determines the driving status by applying the oscillation and travel distance of the passenger's body in the lateral direction, which is estimated during cornering, to the driving determination map for maintained acceleration (lateral direction).

•  The instrument cluster displays the determined driving status using the green and blue lamps and the white gauge (steering operation).

am3zzn00003327

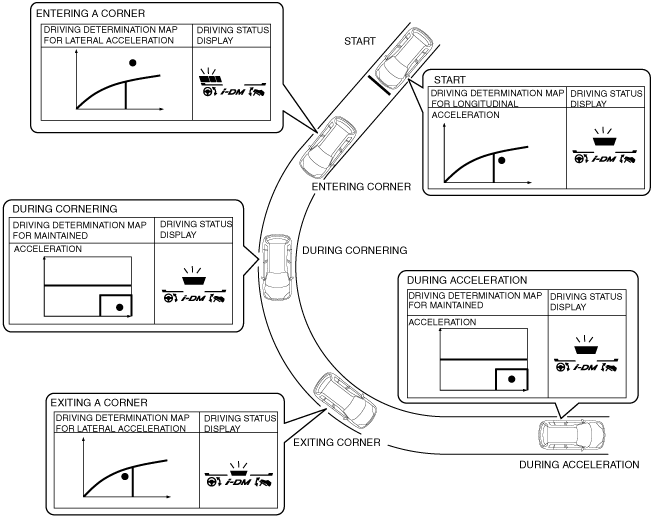

•  The PCM determines the driver's driving status using the driving determination maps separately according to the vehicle's driving conditions.

am3zzn00003328

Driving diagnosis

•  Based on the i-DM diagnosis signal from the PCM, the driver's driving diagnosis for one trip^* is displayed in the multi information display.

•  The instrument cluster displays the following driving diagnosis items:

―  Score for this trip

―  Average

―  Stage

―  Informative pointers

Score for this trip

•  Driving status determined by the control maps during the one trip is determined comprehensively, and the driving diagnosis is displayed with a numeric score between 1.0 to 5.0.

am3zzn00003339

―  If the driving period is less than 5 min. and the frequency of changes in acceleration is less than the specified times, the score is displayed as <-->.

•  A higher numeric indicates better driving status.

Average

•  The average is displayed the cumulative average value of the previous ten averages.

am3zzn00003340

Stage

•  The stage indicates the level of the driving technique.

am3zzn00003341

•  The stage has three grades from 1 to 3, and it upgrades when the average is 4.75 or more for 5 times continuously, and downgrades when the average is 1.95 or less for 15 times continuously.

•  The stage can be changed to 5-grade. Refer to the workshop manual for the switching procedure.

Informative pointers

•  The informative pointers are displayed 5 sec. after the ignition is switched off.

am3zzn00003342

•  Score for this trip and average is compared and any of the following informative pointers is selected and displayed.

Informative pointers display table

Display on LCD	Display condition	Informative pointer
	Score for this trip is 5.0	Continue to always drive vehicle in this manner
	Score for this trip is 4.0—4.9	Maintain current driving level while trying to improve
	Score for this trip is 2.0—3.9 and average is less than 2.0	Try and improve upon current level
	Score for this trip is 2.0—3.9 and average is 2.0 or more, or score for this trip is 1.0—1.9	Occupants feel discomfort caused by frequent jarring due to high frequency of slight vehicle decelerations. Reduce frequency of brake pedal operation.
		Occupants feel discomfort caused by frequent jarring due to high frequency of slight vehicle accelerations. Reduce frequency of accelerator pedal operation.
		Occupants feel discomfort caused by frequent jarring due to high frequency of steering wheel cut back. Reduce frequency of steering wheel operation.
		Occupants feel discomfort caused by the driver suddenly depressing and releasing the accelerator pedal. Try to depress and release the accelerator pedal more smoothly.
		Occupants feel discomfort caused by the driver suddenly depressing and releasing the brake pedal. Try to depress and release the brake pedal more smoothly.
		Occupants feel discomfort caused by the driver suddenly maneuvering the steering wheel. Try to operate the steering wheel more smoothly.
	Score for this trip is <-->	Note •  Displays when score for this trip cannot be displayed.

Operation

Driving status

1.  Based on the vehicle speed signal from the DSC HU/CM and the steering angle signal from the EHPAS control module, the PCM detects the vehicle movement while the vehicle is being driven and estimates the passenger's postural condition.

2.  The PCM applies the information of the estimated passenger's postural condition to the control map, and determines the driving status display.

3.  The PCM sends the driving status display to the instrument cluster as an i-DM control status signal.

4.  When the instrument cluster receives the i-DM control status signal, it displays the green and blue lamps and the white gauge (pedal and steering operations).

am3zzn00003329

Driving diagnosis

1.  Based on the driving status information, the PCM calculates the driving diagnosis and sends the display content to the instrument cluster as an i-DM diagnosis signal.

2.  When the instrument cluster receives the i-DM evaluation signal, it sends the i-DM evaluation signal to the multi information display.

3.  When the multi information display receives the i-DM diagnosis signal, it displays the score for the current trip, the average, the stage, and an informative pointer.

am3zzn00003330
