BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD


European (L.H.D. U.K.) specs.

am3uub00000034

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
x
x
0.70 {0.028}
2
Front bumper bracket
-
x
-
2.00 {0.0787}
3
Front bumper stay (inner)
-
x
-
1.60 {0.063}
4
Front bumper stay (outer)
-
x
-
1.60 {0.063}
5
Shroud side member
Upper
-
-
x
2.60 {0.102}
Lower
-
-
x
2.90 {0.114}
6
Frame inner reinforcement No.1
-
x
x
2.60 {0.102}
7
Frame inner reinforcement No.2
-
x
x
2.60 {0.102}
8
Battery carrier reinforcement
-
-
x
2.00 {0.0787}
9
Side deck member
-
-
x
1.80 {0.0709}
10
Suspension mounting reinforcement
-
x
x
2.00 {0.0787}
11
Front frame reinforcement (inner)
-
-
x
1.60 {0.0630}
12
Front side frame (inner)
Front
-
x
x
1.60 {0.0630}
Rear
x
-
-
1.60 {0.0630}
13
Front side frame (outer)
-
x
x
1.60 {0.0630}
14
Wheel apron panel (front)
-
x
x
1.00 {0.0394}
15
Suspension housing (lower)
-
-
x
2.60 {0.102}
16
Front frame reinforcement (inner)
-
-
x
2.30 {0.0906}
17
Suspension mounting reinforcement
-
-
x
2.60 {0.102}
18
Shroud side panel
-
-
x
1.20 {0.0472}
19
Front fender panel
-
x
x
0.65 {0.026}
20
Apron reinforcement No.3
-
-
x
1.00 {0.0394}
21
Front side frame inner reinforcement
-
-
-
2.00 {0.0787}
22
Front frame (rear)
-
x
x
1.80 {0.0709}
23
Apron reinforcement (lower)
-
-
x
0.70 {0.028}
24
Apron reinforcement (upper)
-
-
x
1.00 {0.0394}
25
Shroud upper reinforcement
-
-
x
1.20 {0.0472}
26
Front fender bracket
-
-
x
1.20 {0.0472}
27
Toque box
-
-
x
1.60 {0.0630}
28
Front frame (rear)
-
x
x
0.80 {0.031}
29
Cowl side reinforcement
-
-
x
1.00 {0.0394}
30
Front pillar upper reinforcement
-
x
-
1.40 {0.0551}
31
Front pillar (inner)
x
-
-
1.20 {0.0472}
32
Hinge pillar (inner)
x
-
x
1.40 {0.0551}
33
Roof rail (inner, rear)
x
-
-
1.60 {0.0630}
34
Side sill (inner)
x
-
x
1.20 {0.0472}
35
Hinge reinforcement
x
-
-
1.60 {0.0630}
36
Front pillar reinforcement
x
-
-
1.40 {0.0551}
37
B-pillar (inner)
Upper
-
x
-
1.20 {0.0472}
Lower
-
x
x
1.20 {0.0472}
38
Roof rail reinforcement
x
-
-
1.80 {0.0709}
39
B-pillar inner reinforcement
x
-
-
1.80 {0.0709}
40
B-pillar reinforcement
Upper
x
-
-
2.00 {0.0787}
Lower
x
-
-
1.20 {0.0472}
41
Side sill reinforcement
x
-
x
1.40 {0.0551}
42
Side frame (outer)
-
-
x
0.70 {0.028}
43
Seal plate
-
-
x
0.70 {0.028}
44
Wheel house (inner)
-
-
x
0.70 {0.028}
45
Side brace
-
-
-
0.90 {0.035}
46
Package junction
-
-
-
0.70 {0.028}
47
Package gusset
-
-
-
1.00 {0.0394}
48
Rear pillar (inner)
-
-
-
0.65 {0.026}
49
Rear fender rain rail
-
-
x
0.70 {0.028}
50
Corner plate
-
-
x
0.70 {0.028}
51
Rear pillar (inner, lower)
-
-
x
0.65 {0.026}
52
Front door outer panel
-
x
x
0.70 {0.028}
53
Rear door outer panel
-
x
x
0.65 {0.026}
54
Rear package tray
-
-
-
0.60 {0.024}
55
Trunk lid panel
-
x
x
0.70 {0.028}
56
Cowl panel
-
-
x
0.65 {0.026}
57
Dash upper member
-
-
x
0.65 {0.026}
58
Wiper bracket (side)
-
-
x
1.40 {0.0551}
59
Wiper bracket (center)
-
-
x
1.40 {0.0551}
60
Dash upper panel
-
-
x
1.00 {0.0394}
61
Dash lower panel
-
-
x
0.80 {0.031}
62
Dash lower member
x
-
x
1.40 {0.0551}
63
Front header
-
-
-
0.65 {0.026}
64
Roof reinforcement No.1
-
-
-
0.55 {0.022}
65
Roof reinforcement No.2
x
-
-
1.60 {0.0630}
66
Roof reinforcement No.3
-
-
-
0.55 {0.022}
67
Rear header
-
-
-
0.70 {0.028}
68
Roof panel
-
-
-
0.70 {0.028}
69
Front B frame
-
x
x
0.90 {0.035}
70
Dashboard bracket
-
x
-
0.70 {0.028}
71
Crossmember No.2
x
-
-
1.20 {0.0472}
72
Seat bracket
-
x
-
1.80 {0.0709}
73
Front floor panel
-
-
x
0.65 {0.026}
74
Rear floor panel
-
-
x
0.75 {0.030}
75
Crossmember No.3
x
-
x
1.40 {0.0551}
76
Crossmember No.3 reinforcement
-
-
x
1.60 {0.0630}
77
Link bracket
-
x
x
2.60 {0.102}
78
Crossmember No.4 gusset
-
-
x
1.40 {0.0551}
79
Crossmember No.3 (front)
x
-
x
1.20 {0.0472}
80
Rear side frame
Front
x
-
x
2.00 {0.0787}
Center
x
-
x
2.60 {0.102}
Rear
x
-
x
1.80 {0.0709}
81
Tiedown reinforcement
Inner
-
-
x
2.60 {0.102}
Outer
-
x
x
3.20 {0.126}
82
Rear frame gusset
-
x
x
2.00 {0.0787}
83
Rear end panel
-
-
x
0.60 {0.024}


Australian, General (R.H.D. L.H.D.) specs.

am3uub00000034

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
x
x
0.70 {0.028}
2
Front bumper bracket
-
x
-
2.00 {0.0787}
3
Front bumper stay (inner)
-
x
-
1.60 {0.063}
4
Front bumper stay (outer)
-
x
-
1.60 {0.063}
5
Shroud side member
Upper
-
-
x
2.60 {0.102}
Lower
-
-
x
2.90 {0.114}
6
Frame inner reinforcement No.1
-
x
x
2.60 {0.102}
7
Frame inner reinforcement No.2
-
x
x
2.60 {0.102}
8
Battery carrier reinforcement
-
-
x
2.00 {0.0787}
9
Side deck member
-
-
x
1.80 {0.0709}
10
Suspension mounting reinforcement
-
x
x
2.00 {0.0787}
11
Front frame reinforcement (inner)
-
-
x
1.60 {0.0630}
12
Front side frame (inner)
Front
-
x
x
1.60 {0.0630}
Rear
x
-
-
1.60 {0.0630}
13
Front side frame (outer)
-
x
x
1.60 {0.0630}
14
Wheel apron panel (front)
-
x
x
1.00 {0.0394}
15
Suspension housing (lower)
-
-
x
2.60 {0.102}
16
Front frame reinforcement (inner)
-
-
x
2.30 {0.0906}
17
Suspension mounting reinforcement
-
-
x
2.60 {0.102}
18
Shroud side panel
-
-
x
1.20 {0.0472}
19
Front fender panel
-
x
x
0.65 {0.026}
20
Apron reinforcement No.3
-
-
x
1.00 {0.0394}
21
Front side frame inner reinforcement
-
-
-
2.00 {0.0787}
22
Front frame (rear)
-
x
x
1.80 {0.0709}
23
Apron reinforcement (lower)
-
-
x
0.70 {0.028}
24
Apron reinforcement (upper)
-
-
x
1.00 {0.0394}
25
Shroud upper reinforcement
-
-
x
1.20 {0.0472}
26
Front fender bracket
-
-
x
1.20 {0.0472}
27
Toque box
-
-
x
1.60 {0.0630}
28
Front frame (rear)
-
x
x
0.80 {0.031}
29
Cowl side reinforcement
-
-
x
1.00 {0.0394}
30
Front pillar upper reinforcement
-
x
-
1.40 {0.0551}
31
Front pillar (inner)
x
-
-
1.20 {0.0472}
32
Hinge pillar (inner)
x
-
x
1.40 {0.0551}
33
Roof rail (inner, rear)
x
-
-
1.60 {0.0630}
34
Side sill (inner)
x
-
x
1.20 {0.0472}
35
Hinge reinforcement
x
-
-
1.60 {0.0630}
36
Front pillar reinforcement
x
-
-
1.40 {0.0551}
37
B-pillar (inner)
Upper
-
x
-
1.20 {0.0472}
Lower
-
x
x
1.20 {0.0472}
38
Roof rail reinforcement
x
-
-
1.80 {0.0709}
39
B-pillar inner reinforcement
x
-
-
1.80 {0.0709}
40
B-pillar reinforcement
Upper
x
-
-
2.00 {0.0787}
Lower
x
-
-
1.20 {0.0472}
41
Side sill reinforcement
x
-
x
1.40 {0.0551}
42
Side frame (outer)
-
-
x
0.70 {0.028}
43
Seal plate
-
-
x
0.70 {0.028}
44
Wheel house (inner)
-
-
x
0.70 {0.028}
45
Side brace
-
-
-
0.90 {0.035}
46
Package junction
-
-
-
0.70 {0.028}
47
Package gusset
-
-
-
1.00 {0.0394}
48
Rear pillar (inner)
-
-
-
0.65 {0.026}
49
Rear fender rain rail
-
-
x
0.70 {0.028}
50
Corner plate
-
-
x
0.70 {0.028}
51
Rear pillar (inner, lower)
-
-
x
0.65 {0.026}
52
Front door outer panel
-
x
x
0.70 {0.028}
53
Rear door outer panel
-
x
x
0.65 {0.026}
54
Rear package tray
-
-
-
0.60 {0.024}
55
Trunk lid panel
-
x
x
0.70 {0.028}
56
Cowl panel
-
-
x
0.65 {0.026}
57
Dash upper member
-
-
x
0.65 {0.026}
58
Wiper bracket (side)
-
-
x
1.40 {0.0551}
59
Wiper bracket (center)
-
-
x
1.40 {0.0551}
60
Dash upper panel
-
-
x
1.00 {0.0394}
61
Dash lower panel
-
-
x
0.80 {0.031}
62
Dash lower member
x
-
x
1.40 {0.0551}
63
Front header
-
-
-
0.65 {0.026}
64
Roof reinforcement No.1
-
-
-
0.55 {0.022}
65
Roof reinforcement No.2
x
-
-
1.60 {0.0630}
66
Roof reinforcement No.3
-
-
-
0.55 {0.022}
67
Rear header
-
-
-
0.70 {0.028}
68
Roof panel
-
-
-
0.70 {0.028}
69
Front B frame
-
x
x
0.90 {0.035}
70
Dashboard bracket
-
x
-
0.70 {0.028}
71
Crossmember No.2
x
-
-
1.20 {0.0472}
72
Seat bracket
-
x
-
1.80 {0.0709}
73
Front floor panel
-
-
-
0.65 {0.026}
74
Rear floor panel
-
-
-
0.75 {0.030}
75
Crossmember No.3
x
-
x
1.40 {0.0551}
76
Crossmember No.3 reinforcement
-
-
x
1.60 {0.0630}
77
Link bracket
-
x
x
2.60 {0.102}
78
Crossmember No.4 gusset
-
-
x
1.40 {0.0551}
79
Crossmember No.3 (front)
x
-
x
1.20 {0.0472}
80
Rear side frame
Front
x
-
x
2.00 {0.0787}
Center
x
-
x
2.60 {0.102}
Rear
x
-
x
1.80 {0.0709}
81
Tiedown reinforcement
Inner
-
-
x
2.60 {0.102}
Outer
-
x
x
3.20 {0.126}
82
Rear frame gusset
-
x
x
2.00 {0.0787}
83
Rear end panel
-
-
x
0.60 {0.024}

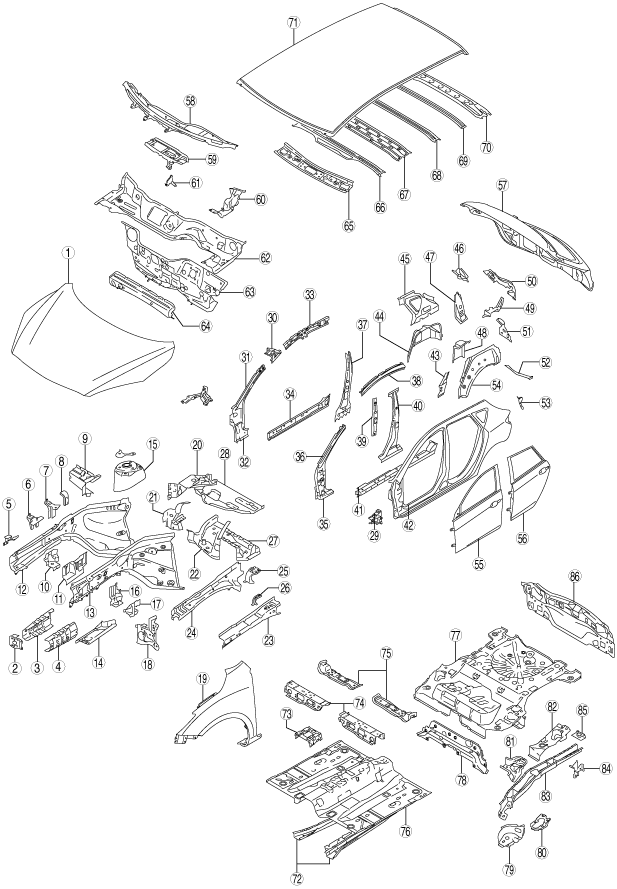

5HB


European (L.H.D. U.K.) specs.

am3uub00000068

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
x
x
0.70 {0.028}
2
Front bumper bracket
-
x
-
2.00 {0.0787}
3
Front bumper stay (inner)
-
x
-
1.60 {0.063}
4
Front bumper stay (outer)
-
x
-
1.60 {0.063}
5
Shroud side member
Upper
-
-
x
2.60 {0.102}
Lower
-
-
x
2.90 {0.114}
6
Frame inner reinforcement No.1
-
x
x
2.60 {0.102}
7
Frame inner reinforcement No.2
-
x
x
2.60 {0.102}
8
Battery carrier reinforcement
-
-
x
2.00 {0.0787}
9
Side deck member
-
-
x
1.80 {0.0709}
10
Suspension mounting reinforcement
-
x
x
2.00 {0.0787}
11
Front frame reinforcement (inner)
-
-
x
1.60 {0.0630}
12
Front side frame (inner)
Front
-
x
x
1.60 {0.0630}
Rear
x
-
-
1.60 {0.0630}
13
Front side frame (outer)
-
x
x
1.60 {0.0630}
14
Wheel apron panel (front)
-
x
x
1.00 {0.0394}
15
Suspension housing (lower)
-
-
x
2.60 {0.102}
16
Front frame reinforcement (inner)
-
-
x
2.30 {0.0906}
17
Suspension mounting reinforcement
-
-
x
2.60 {0.102}
18
Shroud side panel
-
-
x
1.20 {0.0472}
19
Front fender panel
-
x
x
0.65 {0.026}
20
Apron reinforcement No.3
-
-
x
1.00 {0.0394}
21
Front side frame inner reinforcement
-
-
-
2.00 {0.0787}
22
Front frame (rear)
-
x
x
1.80 {0.0709}
23
Apron reinforcement (lower)
-
-
x
0.70 {0.028}
24
Apron reinforcement (upper)
-
-
x
1.00 {0.0394}
25
Shroud upper reinforcement
-
-
x
1.20 {0.0472}
26
Front fender bracket
-
-
x
1.20 {0.0472}
27
Toque box
-
-
x
1.60 {0.0630}
28
Front frame (rear)
-
x
x
0.80 {0.031}
29
Cowl side reinforcement
-
-
x
1.00 {0.0394}
30
Front pillar upper reinforcement
-
x
-
1.40 {0.0551}
31
Front pillar (inner)
x
-
-
1.20 {0.0472}
32
Hinge pillar (inner)
x
-
x
1.40 {0.0551}
33
Roof rail (inner, rear)
x
-
-
1.60 {0.0630}
34
Side sill (inner)
x
-
-
1.20 {0.0472}
35
Hinge reinforcement
x
-
-
1.60 {0.0630}
36
Front pillar reinforcement
x
-
-
1.40 {0.0551}
37
B-pillar (inner)
Upper
-
x
-
1.20 {0.0472}
Lower
-
x
x
1.20 {0.0472}
38
Roof rail reinforcement
x
-
-
1.80 {0.0709}
39
B-pillar inner reinforcement
x
-
-
1.80 {0.0709}
40
B-pillar reinforcement
Upper
x
-
-
2.00 {0.0787}
Lower
x
-
-
1.20 {0.0472}
41
Side sill reinforcement
x
-
x
1.40 {0.0551}
42
Side frame (outer)
-
-
x
0.70 {0.028}
43
Seal plate
-
-
x
0.70 {0.028}
44
Wheel house (inner)
-
-
x
0.70 {0.028}
45
Rear pillar (inner)
-
-
-
0.65 {0.026}
46
Upper corner plate
-
-
-
1.60 {0.0630}
47
Suspension housing reinforcement
-
-
-
1.00 {0.0394}
48
Wheel house gusset
-
-
x
1.80 {0.0709}
49
Side brace
-
-
-
1.00 {0.0394}
50
D-pillar reinforcement
-
-
-
0.70 {0.028}
51
Corner junction
-
-
-
0.70 {0.028}
52
Rear pillar (outer)
-
-
x
0.70 {0.028}
53
Corner plate
-
-
x
0.70 {0.028}
54
Rear pillar (inner, lower)
-
-
x
0.65 {0.026}
55
Front door outer panel
-
x
x
0.70 {0.028}
56
Rear door outer panel
-
x
x
0.65 {0.026}
57
Liftgate outer panel
-
x
x
0.70 {0.028}
58
Cowl panel
-
-
x
0.65 {0.026}
59
Dash upper member
-
-
x
0.65 {0.026}
60
Wiper bracket (side)
-
-
x
1.40 {0.0551}
61
Wiper bracket (center)
-
-
x
1.40 {0.0551}
62
Dash upper panel
-
-
x
1.00 {0.0394}
63
Dash lower panel
-
-
x
0.80 {0.031}
64
Dash lower member
x
-
x
1.40 {0.0551}
65
Front header
-
-
-
0.65 {0.026}
66
Roof reinforcement No.1
-
-
-
0.55 {0.022}
67
Roof reinforcement No.2
x
-
-
1.60 {0.0630}
68
Roof reinforcement No.3
-
-
-
0.55 {0.022}
69
Roof reinforcement No.4
-
-
-
0.55 {0.022}
70
Rear header
-
-
-
0.75 {0.030}
71
Roof panel
-
-
-
0.75 {0.030}
72
Front B frame
-
x
x
0.90 {0.035}
73
Dashboard bracket
-
x
-
0.70 {0.028}
74
Crossmember No.2
x
-
-
1.20 {0.0472}
75
Seat bracket
-
x
-
1.80 {0.0709}
76
Front floor panel
-
-
x
0.65 {0.026}
77
Rear floor panel
-
-
x
0.75 {0.030}
78
Crossmember No.3
x
-
x
1.40 {0.0551}
79
Crossmember No.3 reinforcement
-
-
x
1.60 {0.0630}
80
Link bracket
-
x
x
2.60 {0.102}
81
Crossmember No.4 gusset
-
-
x
1.40 {0.0551}
82
Crossmember No.3 (front)
x
-
x
1.20 {0.0472}
83
Rear side frame
Front
x
-
x
2.00 {0.0787}
Center
x
-
x
2.60 {0.102}
Rear
x
-
x
1.80 {0.0709}
84
Tiedown reinforcement
Inner
-
-
x
2.60 {0.102}
Outer
-
x
x
3.20 {0.126}
85
Rear frame gusset
-
x
x
2.00 {0.0787}
86
Rear end panel
-
-
x
0.60 {0.024}


Australian, General (R.H.D. L.H.D.) specs.

am3uub00000068

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
x
x
0.70 {0.028}
2
Front bumper bracket
-
x
-
2.00 {0.0787}
3
Front bumper stay (inner)
-
x
-
1.60 {0.063}
4
Front bumper stay (outer)
-
x
-
1.60 {0.063}
5
Shroud side member
Upper
-
-
x
2.60 {0.102}
Lower
-
-
x
2.90 {0.114}
6
Frame inner reinforcement No.1
-
x
x
2.60 {0.102}
7
Frame inner reinforcement No.2
-
x
x
2.60 {0.102}
8
Battery carrier reinforcement
-
-
x
2.00 {0.0787}
9
Side deck member
-
-
x
1.80 {0.0709}
10
Suspension mounting reinforcement
-
x
x
2.00 {0.0787}
11
Front frame reinforcement (inner)
-
-
x
1.60 {0.0630}
12
Front side frame (inner)
Front
-
x
x
1.60 {0.0630}
Rear
x
-
-
1.60 {0.0630}
13
Front side frame (outer)
-
x
x
1.60 {0.0630}
14
Wheel apron panel (front)
-
x
x
1.00 {0.0394}
15
Suspension housing (lower)
-
-
x
2.60 {0.102}
16
Front frame reinforcement (inner)
-
-
x
2.30 {0.0906}
17
Suspension mounting reinforcement
-
-
x
2.60 {0.102}
18
Shroud side panel
-
-
x
1.20 {0.0472}
19
Front fender panel
-
x
x
0.65 {0.026}
20
Apron reinforcement No.3
-
-
x
1.00 {0.0394}
21
Front side frame inner reinforcement
-
-
-
2.00 {0.0787}
22
Front frame (rear)
-
x
x
1.80 {0.0709}
23
Apron reinforcement (lower)
-
-
x
0.70 {0.028}
24
Apron reinforcement (upper)
-
-
x
1.00 {0.0394}
25
Shroud upper reinforcement
-
-
x
1.20 {0.0472}
26
Front fender bracket
-
-
x
1.20 {0.0472}
27
Toque box
-
-
x
1.60 {0.0630}
28
Front frame (rear)
-
x
x
0.80 {0.031}
29
Cowl side reinforcement
-
-
x
1.00 {0.0394}
30
Front pillar upper reinforcement
-
x
-
1.40 {0.0551}
31
Front pillar (inner)
x
-
-
1.20 {0.0472}
32
Hinge pillar (inner)
x
-
x
1.40 {0.0551}
33
Roof rail (inner, rear)
x
-
-
1.60 {0.0630}
34
Side sill (inner)
x
-
-
1.20 {0.0472}
35
Hinge reinforcement
x
-
-
1.60 {0.0630}
36
Front pillar reinforcement
x
-
-
1.40 {0.0551}
37
B-pillar (inner)
Upper
-
x
-
1.20 {0.0472}
Lower
-
x
x
1.20 {0.0472}
38
Roof rail reinforcement
x
-
-
1.80 {0.0709}
39
B-pillar inner reinforcement
x
-
-
1.80 {0.0709}
40
B-pillar reinforcement
Upper
x
-
-
2.00 {0.0787}
Lower
x
-
-
1.20 {0.0472}
41
Side sill reinforcement
x
-
x
1.40 {0.0551}
42
Side frame (outer)
-
-
x
0.70 {0.028}
43
Seal plate
-
-
x
0.70 {0.028}
44
Wheel house (inner)
-
-
x
0.70 {0.028}
45
Rear pillar (inner)
-
-
-
0.65 {0.026}
46
Upper corner plate
-
-
-
1.60 {0.0630}
47
Suspension housing reinforcement
-
-
-
1.00 {0.0394}
48
Wheel house gusset
-
-
x
1.80 {0.0709}
49
Side brace
-
-
-
1.00 {0.0394}
50
D-pillar reinforcement
-
-
-
0.70 {0.028}
51
Corner junction
-
-
-
0.70 {0.028}
52
Rear pillar (outer)
-
-
x
0.70 {0.028}
53
Corner plate
-
-
x
0.70 {0.028}
54
Rear pillar (inner, lower)
-
-
x
0.65 {0.026}
55
Front door outer panel
-
x
x
0.70 {0.028}
56
Rear door outer panel
-
x
x
0.65 {0.026}
57
Liftgate outer panel
-
x
x
0.70 {0.028}
58
Cowl panel
-
-
x
0.65 {0.026}
59
Dash upper member
-
-
x
0.65 {0.026}
60
Wiper bracket (side)
-
-
x
1.40 {0.0551}
61
Wiper bracket (center)
-
-
x
1.40 {0.0551}
62
Dash upper panel
-
-
x
1.00 {0.0394}
63
Dash lower panel
-
-
x
0.80 {0.031}
64
Dash lower member
x
-
x
1.40 {0.0551}
65
Front header
-
-
-
0.65 {0.026}
66
Roof reinforcement No.1
-
-
-
0.55 {0.022}
67
Roof reinforcement No.2
x
-
-
1.60 {0.0630}
68
Roof reinforcement No.3
-
-
-
0.55 {0.022}
69
Roof reinforcement No.4
-
-
-
0.55 {0.022}
70
Rear header
-
-
-
0.75 {0.030}
71
Roof panel
-
-
-
0.75 {0.030}
72
Front B frame
-
x
x
0.90 {0.035}
73
Dashboard bracket
-
x
-
0.70 {0.028}
74
Crossmember No.2
x
-
-
1.20 {0.0472}
75
Seat bracket
-
x
-
1.80 {0.0709}
76
Front floor panel
-
-
-
0.65 {0.026}
77
Rear floor panel
-
-
-
0.75 {0.030}
78
Crossmember No.3
x
-
x
1.40 {0.0551}
79
Crossmember No.3 reinforcement
-
-
x
1.60 {0.0630}
80
Link bracket
-
x
x
2.60 {0.102}
81
Crossmember No.4 gusset
-
-
x
1.40 {0.0551}
82
Crossmember No.3 (front)
x
-
x
1.20 {0.0472}
83
Rear side frame
Front
x
-
x
2.00 {0.0787}
Center
x
-
x
2.60 {0.102}
Rear
x
-
x
1.80 {0.0709}
84
Tiedown reinforcement
Inner
-
-
x
2.60 {0.102}
Outer
-
x
x
3.20 {0.126}
85
Rear frame gusset
-
x
x
2.00 {0.0787}
86
Rear end panel
-
-
x
0.60 {0.024}
