SHROUD SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008740900

Symbol Mark

am3uub00000096

Removal Procedure

LH

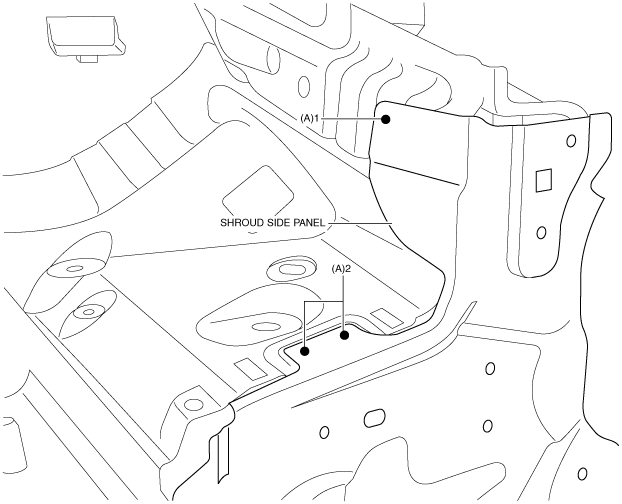

1.  Drill the 10 locations indicated by (A) shown in the figure.

Note

•  When removing the shroud side panel and the side outer panel separately, drill the 4 locations indicated by (B).

am3uub00000097

am3uub00000098

2.  Remove the shroud side panel.

RH

1.  Drill the 11 locations indicated by (A) shown in the figure.

Note

•  When removing the shroud side panel and the side outer panel separately, drill the 3 locations indicated by (B).

am3uub00000099

am3uub00000100

2.  Remove the shroud side panel.
