SHROUD SIDE PANEL INSTALLATION [PANEL REPLACEMENT]


id098008741000


Symbol Mark

am3uub00000101

Installation Procedure


LH

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

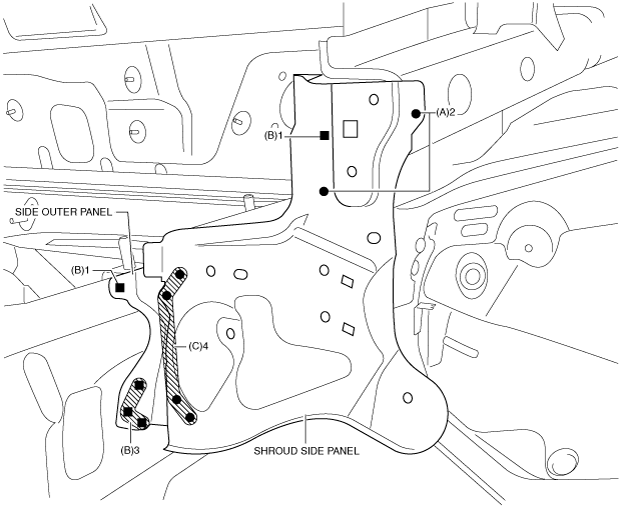

4.  Spot weld the 2 locations indicated by (A) shown in the figure.

5.  Plug weld the 8 locations indicated by (B) shown in the figure while install the shroud side panel.

Note
•  When replacing the shroud side panel and side outer panel separately, spot weld the 4 locations indicated by (B).

am3uub00000102
am3uub00000103


RH

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Spot weld the 6 locations indicated by (A) shown in the figure.

5.  Plug weld the 6 locations indicated by (B) shown in the figure while install the shroud side panel.

Note
•  When replacing the shroud side panel and side outer panel separately, spot weld the 4 locations indicated by (B).

am3uub00000104
am3uub00000105
