COWL SIDE REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]


id098008741800


Symbol Mark

am3uub00000108

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

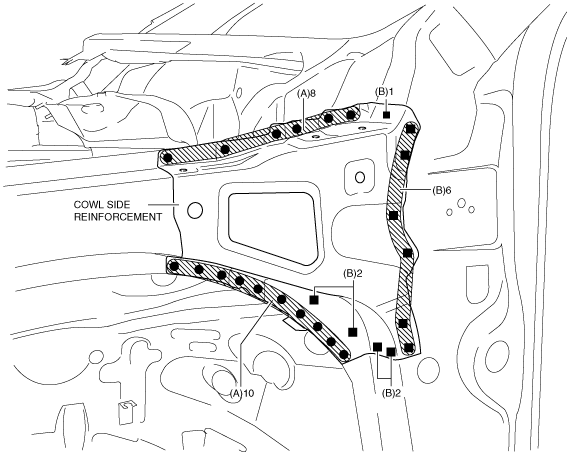

4.  Spot weld the 18 locations indicated by (A) shown in the figure.

5.  Plug weld the 11 locations indicated by (B) shown in the figure while install the cowl side reinforcement.

am3uub00000109
