FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

am3uub00000158

Removal Procedure

1.  Drill the 9 locations indicated by (A) and rough cut area locations indicated by (B) shown in the figure.

am3uub00000159

2.  Remove the damaged part of the front side frame outer.

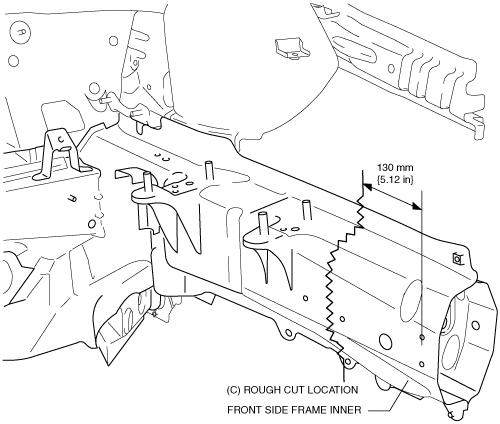

3.  Rough cut area locations indicated by (C) shown in the figure.

am3uub00000160

4.  Remove the damaged part of the front side frame inner.
