TORQUE BOX INSTALLATION [PANEL REPLACEMENT]

id098008742400

Symbol Mark

am3uub00000166

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

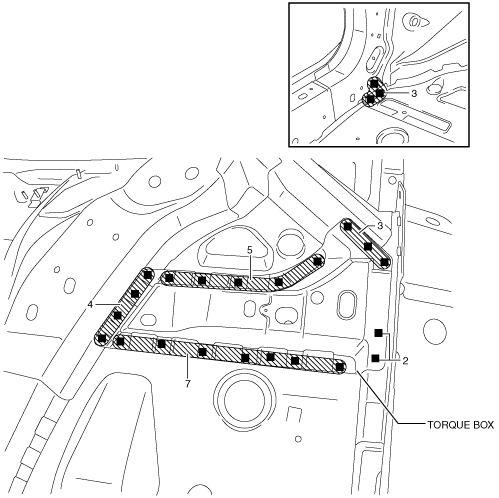

4.  Plug weld the 24 locations shown in the figure while install the torque box.
