FRONT FRAME (REAR) REMOVAL [PANEL REPLACEMENT]

id098008742500

Symbol Mark

am3uub00000168

Removal Procedure

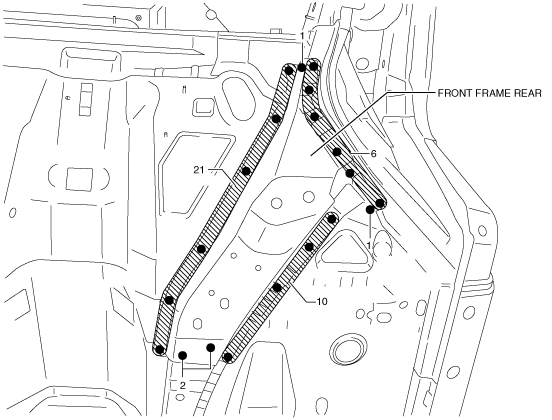

1.  Drill the 41 locations shown in the figure.

am3uub00000263

2.  Remove the front frame rear.
