REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

Symbol Mark

am3uub00000215

Removal Procedure

Shallow tire well type

1.  Rough cut at the locations indicated by (A) shown in the figure.

2.  Drill the 93 locations indicated by (B) shown in the figure.

Caution

•  When rough cutting area (A), cut 20mm {0.79 in} away from the flange (towards rear) at the rear of the lower anchor.

am3zzb00000052

3.  Remove the rear floor pan.

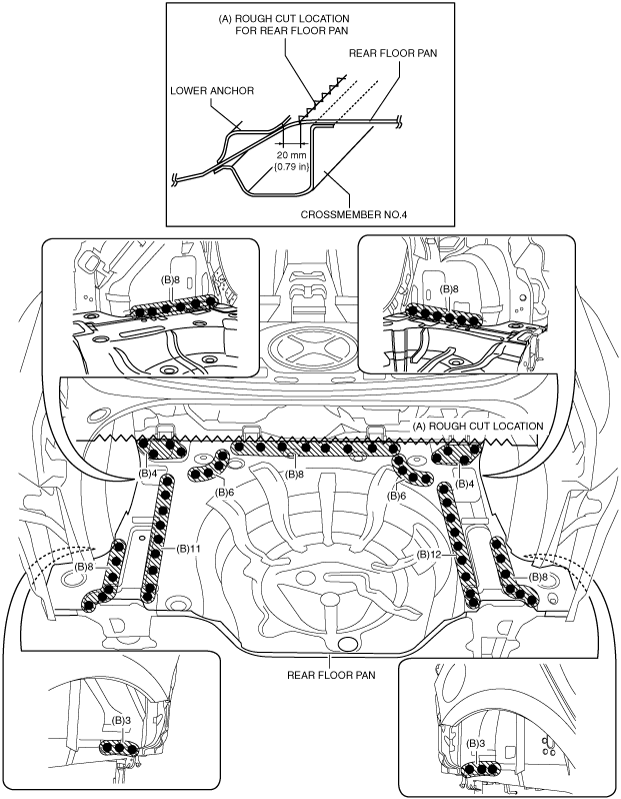

Deep tire well type

1.  Rough cut at the locations indicated by (A) shown in the figure.

2.  Drill the 89 locations indicated by (B) shown in the figure.

Caution

•  When rough cutting area (A), cut 20mm {0.79 in} away from the flange (towards rear) at the rear of the lower anchor.

am3zzb00000053

3.  Remove the rear floor pan.
