FRONT BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008743100

Symbol Mark

am3uub00000090

Removal Procedure

LH

1.  Grind the 6 locations shown in the figure.

am3uub00000091

2.  Remove the front bumper bracket.

RH

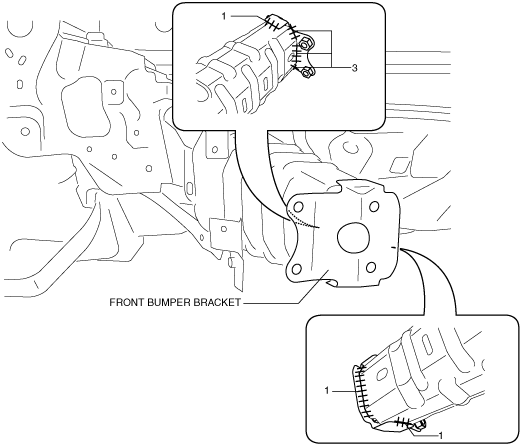

1.  Grind the 6 locations shown in the figure.

am3uub00000244

2.  Remove the front bumper bracket.
