SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008743700

Symbol Mark

am3uub00000189

Removal Procedure

1.  Rough cut area locations indicated by (A) shown in the figure.

2.  Drill the 99 locations indicated by (B) shown in the figure while remove the side sill outer.

am3uub00000190

3.  Drill the 19 locations indicated by (C) shown in the figure.

am3uub00000191

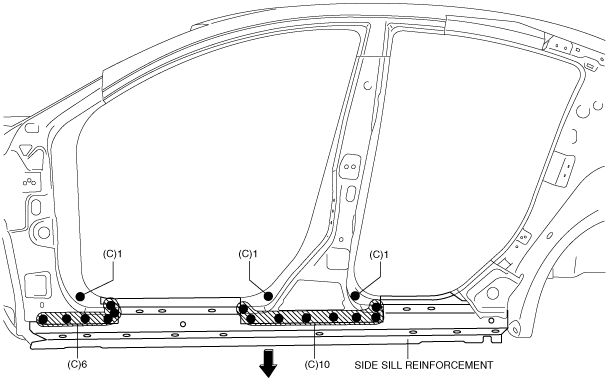

4.  Pull the side sill reinforcement in the direction of arrow shown in the figure.

5.  Remove the side sill reinforcement.
