CENTER PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744000

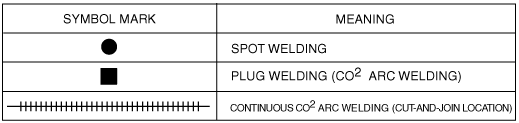

Symbol Mark

am3uub00000185

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

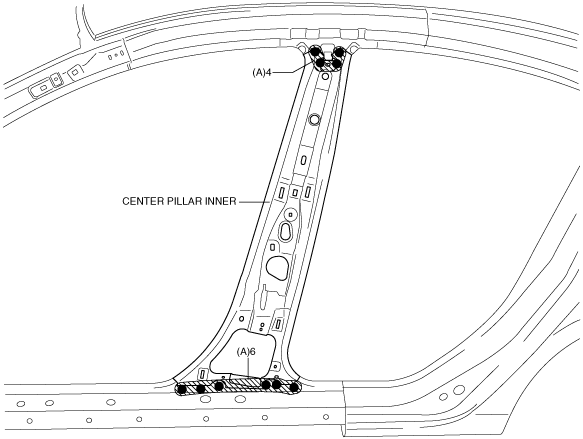

4.  Spot weld the 10 locations indicated by (A) shown in the figure while install the center pillar inner.

am3uub00000186

5.  Plug weld the 1 location indicated by (E) shown in the figure while install the nut plate in B-pillar inner reinforcement and center pillar reinforcement.

6.  Plug weld the 21 llocations indicated by (F) shown in the figure while install the B-pillar inner reinforcement in center pillar reinforcement.

7.  Plug weld the 4 locations indicated by (G) shown in the figure while install the hinge reinforcemenr (lower) in center pillar reinforcement.

am3uub00000285

8.  Plug weld the 20 locations indicated by (B) shown in the figure while install the center pillar reinforcement.

am3uub00000273

9.  Cut-and-join area locations indicated by (C) shown in the figure.

10.  Plug weld the 72 locations indicated by (D) shown in the figure while install the center pillar outer.

am3uub00000274
