REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008744100

Symbol Mark

am3uub00000209

Removal Procedure

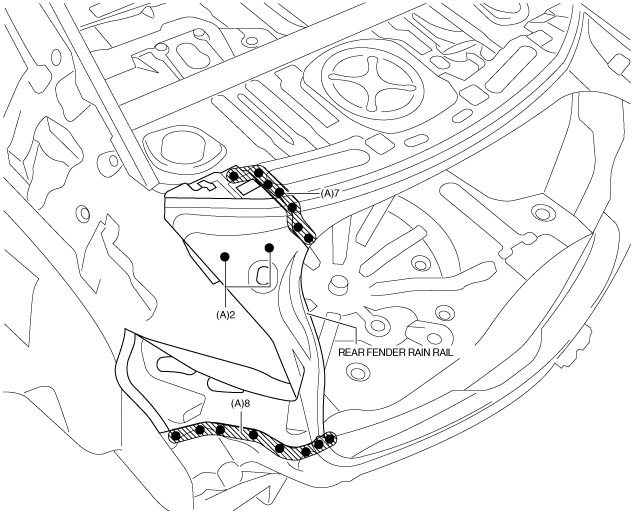

1.  Drill the 17 locations indicated by (A) shown in the figure.

Note

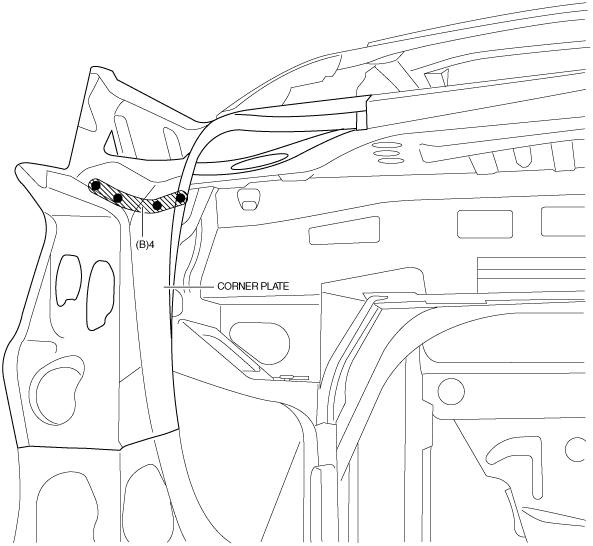

•  When removing the rear fender rain rail and the corner plate separately, drill the 4 locations indicated by (B).

am3uub00000210

am3zzb00000081

2.  Remove the rear fender rain rail.
